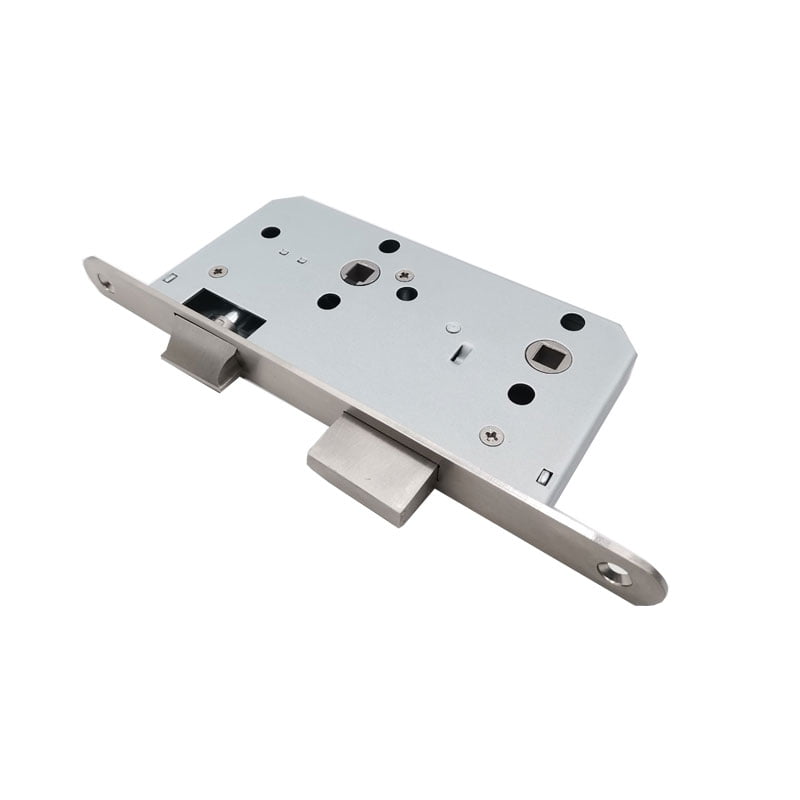

Bathroom lock-78ZWC

Technical Information:

C-T-C Distance:78mm

Backset: 55/60mm

Forend: 235mm*20/22/23/24mm*3mm;  Round / Square Head

Latch bolt: SUS304 casting , reversable,  200,000 cycles test

Deadbolt: SUS 304, 1-turn (20mm),   50,000 cycles test

Lockcase: Steel galvanised with blue coating, SECC,  thickness 1.5mm

Follower: 8*8mm, SUS304

Striking plate: SUS304, thickness 1.5mm

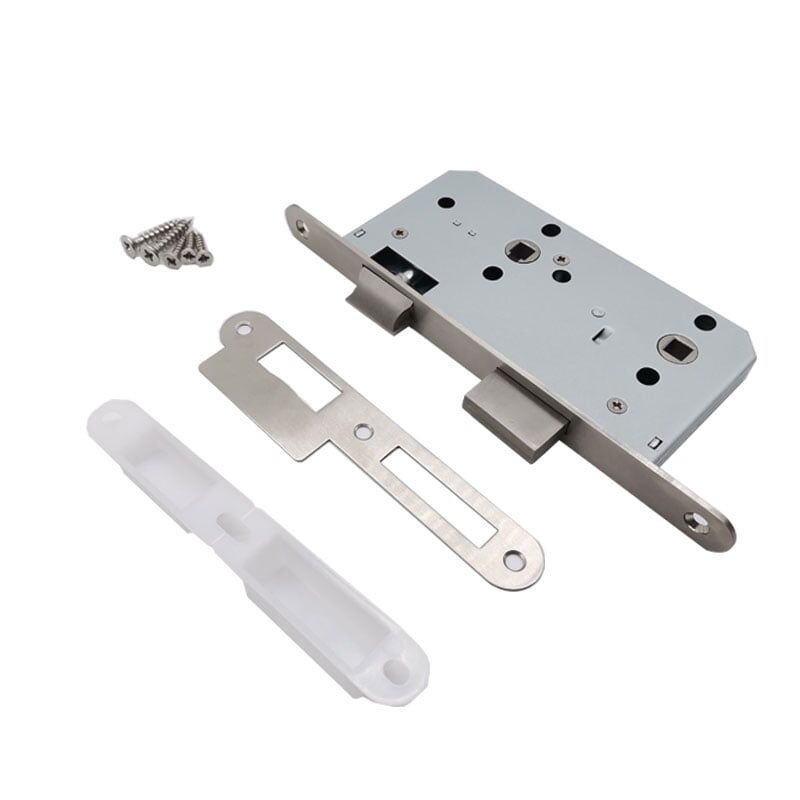

Accessories: plastic box (PE material) & fixing screws (for wooden door or steel door optional)

Package: brown inner box and brown carton box (colour box available)



Features:

• • • • • Mortise lock can be operated from both sides by lever handles to withdraw the latch

• • • • • 8mm smooth follower, square spindle gripping feature
      • • Latch direction can be reversed quickly on site

• • • • • CE Marked: Declaration of conformity available upon request

• • • • • Fire rated:  suitable for 90 minutes timber fire doors and 240 minutes steel fire doors.



Successfully tested to EN12209

Classification Code: 3 X 8 1 0 G – B C 2 0



Dimension according to DIN18251-1
