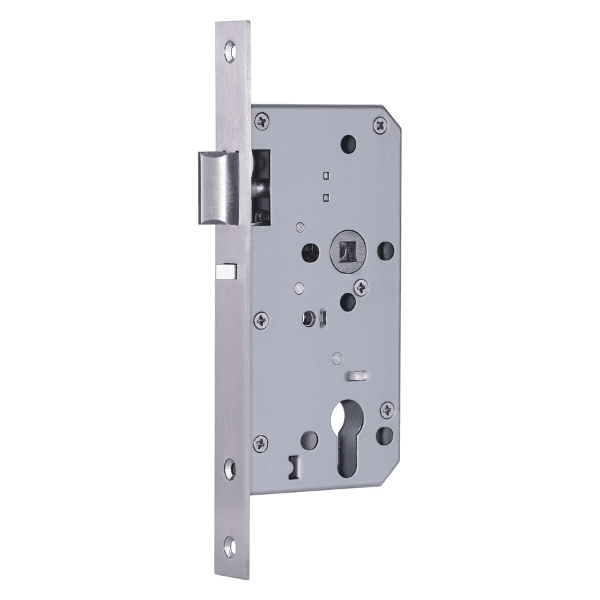

Classroom lock-72ZCR

Technical Information:

C-T-C Distance:72mm

Backset: 55/60 mm

Forend: 235mm*20/22/23/24mm*3mm;  Round / Square Head

Latch bolt: SUS304 casting, reversible,  200,000 cycles test

Lockcase: Steel galvanized with blue coating, SECC,  thickness 1.5mm

Follower: 8*8mm, SUS304

Striking plate: SUS304, thickness 1.5mm

Accessories: plastic box (PE material) & fixing screws (for wooden door or steel door optional)

Package: brown inner box and brown carton box (colour box available)

Features:

• • • • • Mortise lock can be operated from both sides by lever handles to withdraw the latch when unlocked
        • People can always press the handle to withdraw the latch inside, but have to use the cylinder to open the door from outside when the door is locked.
        • 8mm  follower for spilt spindle
        • Latch direction can be reversed quickly on site
        • Escape direction can be changed easily on site

Successfully tested to EN12209
