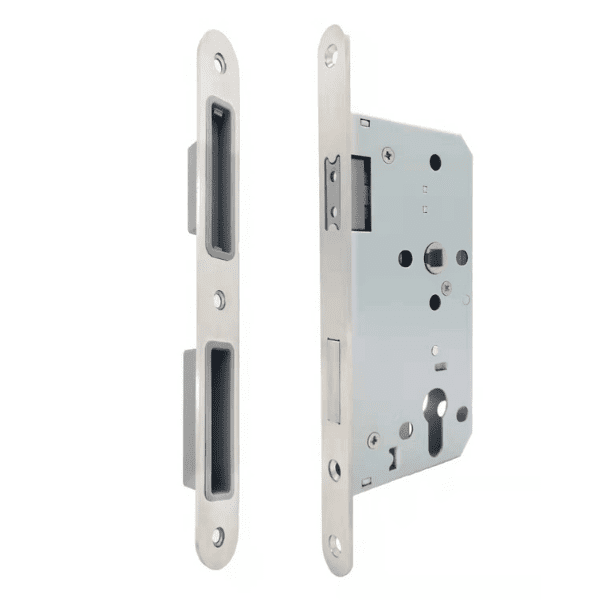

Magnetic lock-72ZMS

Technical Information:

C-T-C Distance:72mm

Backset:55/60mm

Forend: 235mm*20/22/23/24mm*3mm;  Round / Square Head

Latch bolt: magnet latch,  200,000 cycles test ( Nylon with fiber, gray color, the strong magnet inside.

Deadbolt: SUS 304, 2-turn (20mm),   50,000 cycles test

Lockcase: Steel galvanized with blue coating, SECC,  thickness 1.5mm

Follower: 8*8mm, SUS304

Striking plate: SUS304, thickness 3.0mm

Accessories:  fixing screws (for the wooden door)

Package: brown inner box and brown carton box (colour box available)



Features:

• • • • • Mortise lock can be operated from both sides by lever handles to withdraw the latch

• • • • • 8mm smooth follower, square spindle gripping feature

• • • • • Magnet latch, no friction noise when close the door



Dimension according to DIN18251-1



Magnetic Sashlock/ passage lock/ bathroom lock/ BB key function available on request
