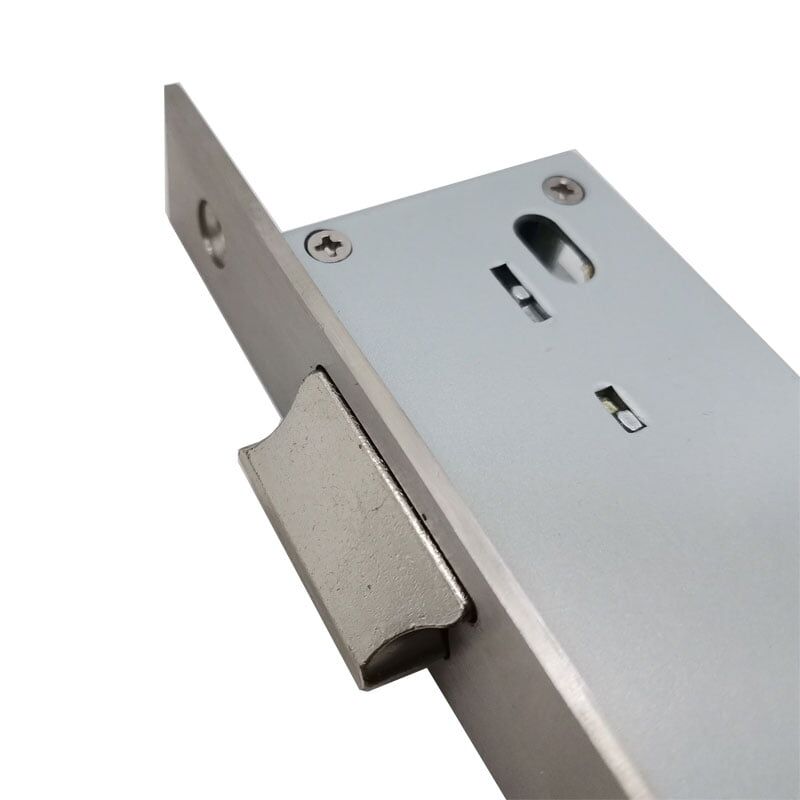

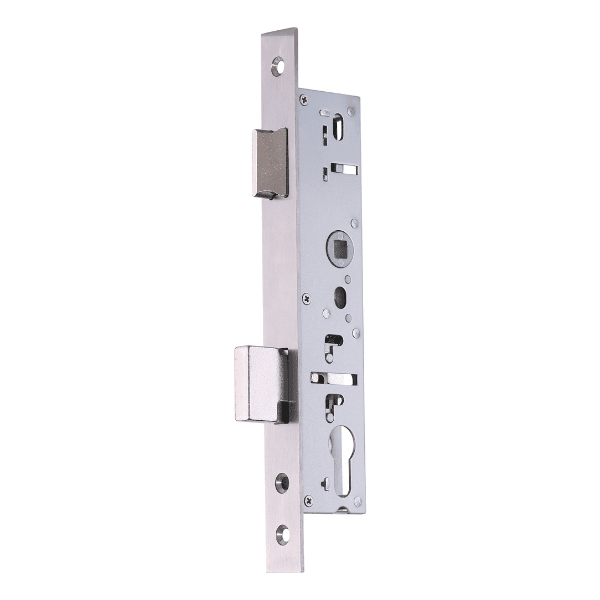

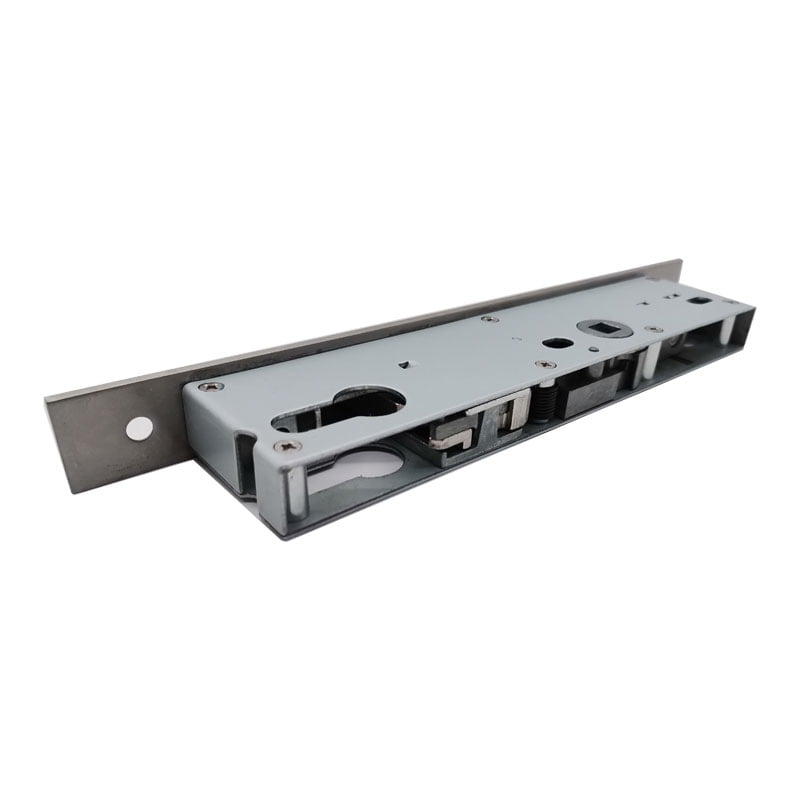

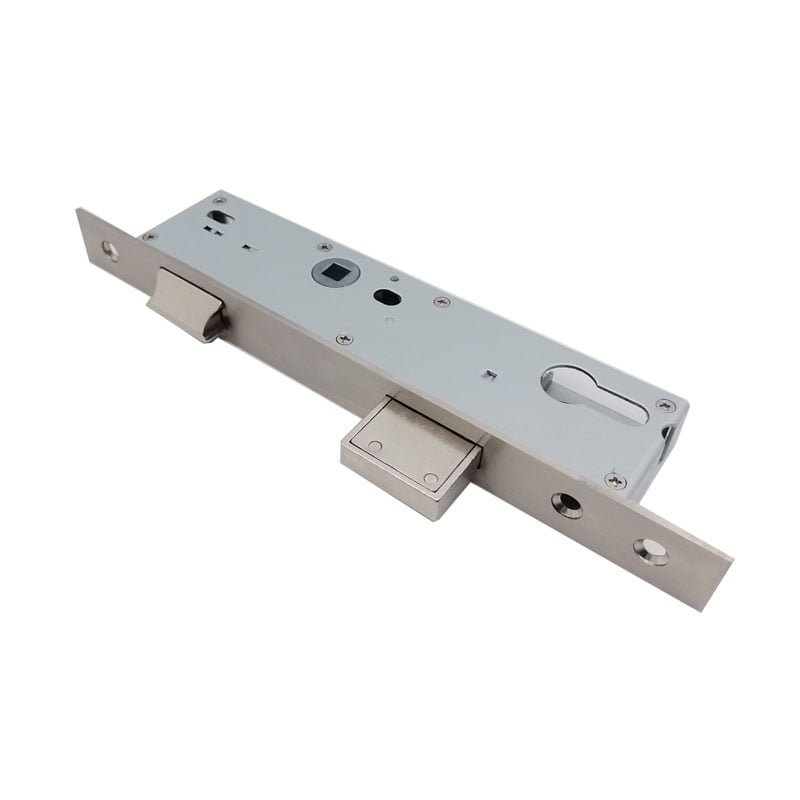

Narrow lock-92K

Technical Information:

C-T-C Distance:92mm

Backset: 30/35mm

Forend: 255mm*24mm*3mm;  Square Head

Latch bolt: Zinc alloy, reversible,  200,000 cycles test

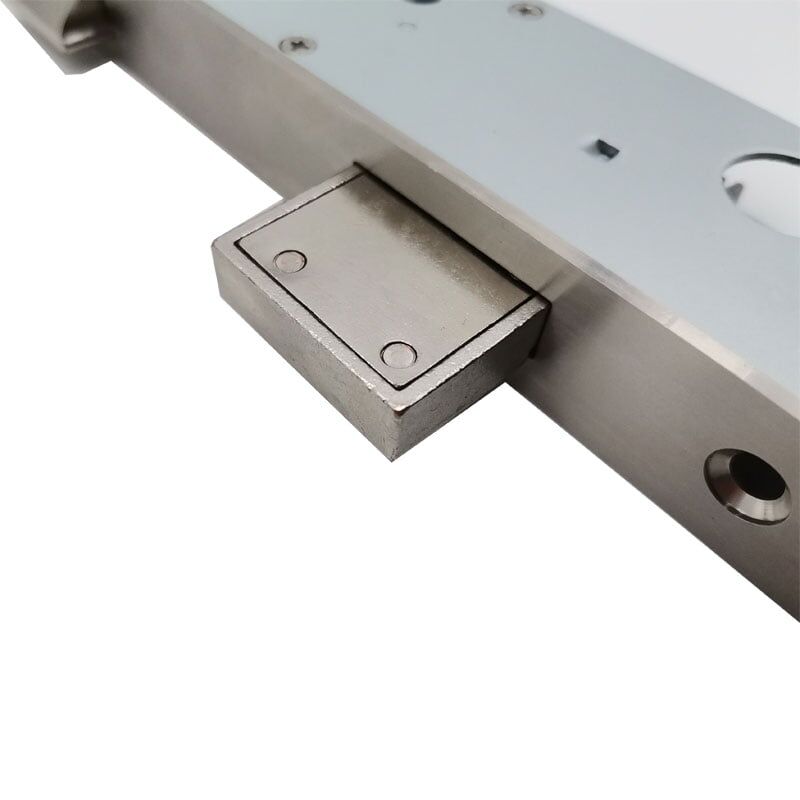

Deadbolt: Zinc alloy, 2-turn (25mm),   50,000 cycles test

Lockcase: Steel galvanized with blue coating, SECC,  thickness 1.5mm

Follower: 8*8mm, Zinc alloy

Striking plate: SUS304, thickness 1.5mm

Accessories: plastic box (PE material) & fixing screws (for wooden door or steel door optional)

Package: white inner box and brown carton box (colour box available)



Features:

• • • • • Mortise lock can be operated from both sides by lever handles to withdraw the latch

• • • • • 8x8mm smooth follower
    • • • Latch direction can be reversed quickly on site
