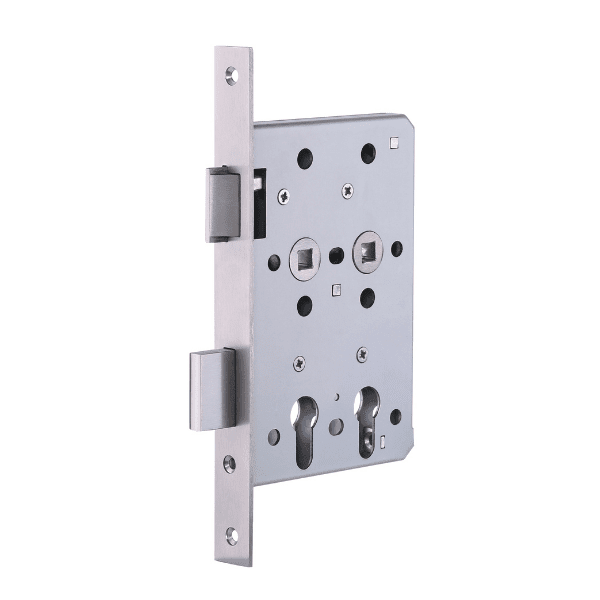

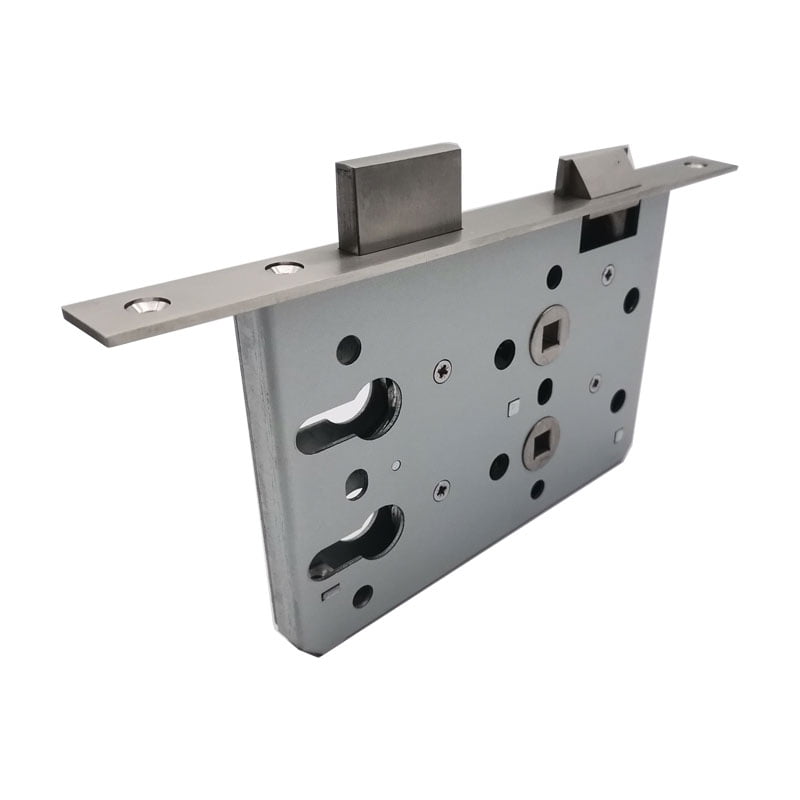

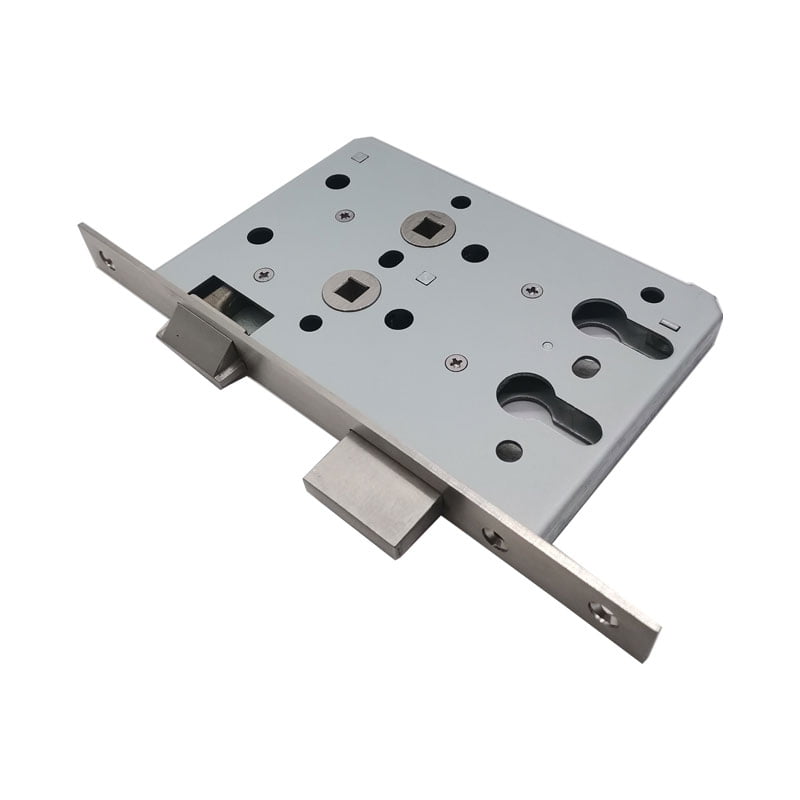

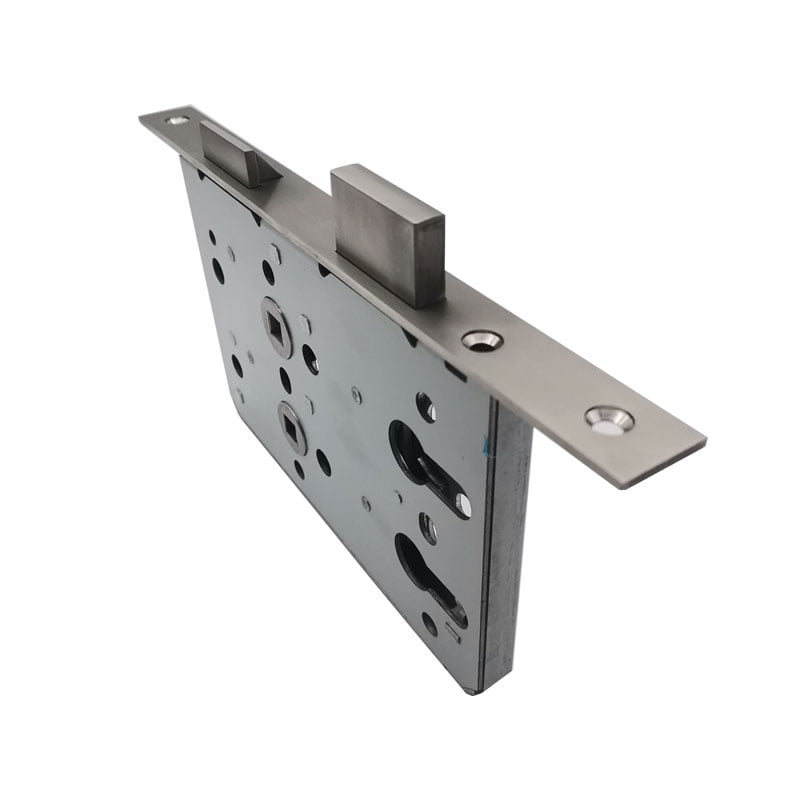

X-ray Room Lock-72HD

According to EN12209, DIN18251-1

Latchbolt, forend and strike plates made of SUS304

Prevention of X ray penetration

Special for ultrasonic test room door

With key action, deadbolt 2-turn



Additional information

C-T-C Distance

72 mm

Backset

40-80 mm

Forend Width

20/24 mm

Forend Type

Round head / Square head

Finish

SSS

Product Details

Technical Information:

C-T-C Distance:72mm

Backset:40-80mm

Forend: 235mm*20/24mm*3mm;  Round / Square Head

Latch bolt: SUS304 casting , reversible,  200,000 cycles test

Deadbolt: SUS 304, 2-turn (20mm),   50,000 cycles test

Lockcase: Steel galvanized with blue coating, SECC,  thickness 1.5mm

Follower: 8*8mm, SUS304

Striking plate: SUS304, thickness 1.5mm

Accessories: plastic box (PE material) & fixing screws (for wooden door or steel door optional)

Package: brown inner box and brown carton box (colour box available)



Features:

          • Mortise lock can be operated from both sides by lever handles to withdraw the latch
          • 8x8mm  follower
          • Latch direction can not be reversed, divided into DIN left and DIN right
          • Use half-cylinder and half handle.





Dimension according to DIN18251-1
