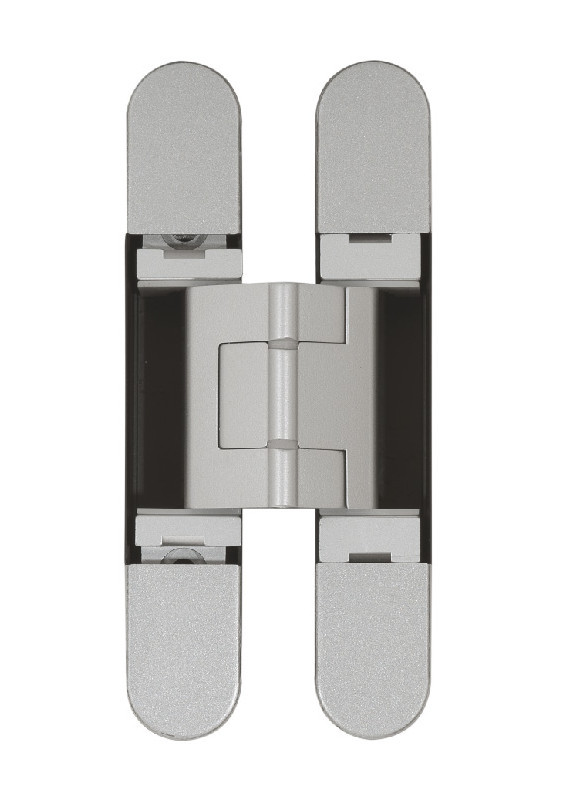

3D adjustable concealed door hinge, also called 3D adjustable hidden door hinge or invisible door hinge, It’s completely hidden or invisible when the door is closed, any concealed hinge part is not visible either outside or inside. Concealed door hinges bring seamless look and simple door lines. The concealed door hinges allow the door to flush close with the frame for a nice-looking appearance, whether creating fashion or modern appearance or improving security to the maximum, hidden door hinges are always the best choice for wooden and aluminum doors.
Compared with the butt hinge, the 3-dimension adjustable function can ensure that the door leaf can be adjusted up/down, left/right, front/back after installation, and can obtain a better appearance. Slump can be avoided by adjusting the position of the door after a long period using. the installation is quick and easy, the inner door can be opened and closed smoothly.
3D adjustable concealed hinges are critical door hardware, therefore, this article takes CH60 as an example to explain the quality inspection standards of 3D adjustable hidden door hinges, helping everyone to better choose safe and high-quality concealed door hinges.
CH60 3D adjustable concealed door hinge – product detail
- Suitable for wooden/aluminum doors and flush doors
- Concealed installation
- 3D adjustable: vertical: ±2mm, horizontal:-2mm/+3mm, depth:±1mm
- Opening angle: 180°
- Load Capacity: 60KG/Pair
- Material: Zinc alloy
- Suitable door Thickness: 29-45mm,
- Max. door width: 900mm; Max. door height: 2100mm
- Available Finish: SC/SN/CP/SG/PB/BL/AB/GB
3D concealed door hinge quality checking standard
Product appearance standard:
①No cuts, scratches, water-soaked, copper exposed, distortion, bubbles, sand hole, plating missing, oxidation, haze and burr, uniform drawing without streaks on the surface of the product;
②The product has no serious deformation, Short material, precise hole position, and Deformity;
③Finish is the same as the color palette;
④LOGO/Mark: The laser mark is clear, and there is no yellowish and nigrescence on the surface;
Size specification standard:
① Dimensions are consistent with technical drawings;
②The size of the countersunk hole meets the requirements of the drawing order, and the screws meet the requirements
As shown in CH60 drawings and pictures, there are 4 countersunk holes for each hinge, and SUS201 mounting screws are equipped with Ø5x30mm.
Functional structure standard:
① All accessories are assembled smoothly, the riveted parts are firm and not loose, and the screw teeth do not slip or not screw properly;
②Flexible opening and closing, smooth opening and closing, no loose core, clicking sound and ladder after opening and closing;
③ After the two hinges are closed, the gap is 1±0.5㎜;
④ After the two hinges are closed, they must be parallel, and there must be no up and down misalignment;
⑤The inner iron sheet cannot be higher than the surface of the product after closing
⑥Adjustable vertical，horizontal和depth
如CH60 3D adjustable: vertical: ±2mm, horizontal:-2mm/+3mm, depth:±1mm
Product Test Standards:
① Electroplating hinge adhesion test: Cut a 1mm*1mm grid on the surface with a sharp knife, and the number of horizontal and vertical numbers is not less than 5 grids. The depth of scratches should be as deep as the bottom layer, and then use 3m adhesive tape to quickly pull up the tape in a direction perpendicular to the surface of the grid. After the adhesion test, the coating falls off <5%;
②Salt spray test: 304 material passed the 96-hour neutral salt spray test without oxidation and rust; zinc alloy passed the 48H neutral salt spray test without oxidation and rust;
③Life test: 200,000 cycles tested on 60kg door mass according to EN1935: 2002
Packaging standard:
①The mark on the front side is clearly written, and the marked product is consistent with the actual situation;
② Consistent with the order quantity requirements
③There is no shortage of packing quantity
④The label of each box and the outer box is clearly printed, and the contents of the label are consistent with the order;
⑤ The packaging materials of each box and the outer box are not damaged or collapsed.
If you want to consider a 3D concealed door hinge as a replacement for a standard hinged door, the load-bearing of the concealed door hinge is a consideration, and more importantly, the quality of the hinge.
By understanding SDH’s quality inspection standards, I believe you will never be confused about choosing concealed door hinge again. SDH Hardware, as the most professional manufacturer of invisible hinges for doors in China, we can produce invisible hinges with different load capacity, sizes and surface treatments to meet your unique needs, and you can get free samples for quality checking.
