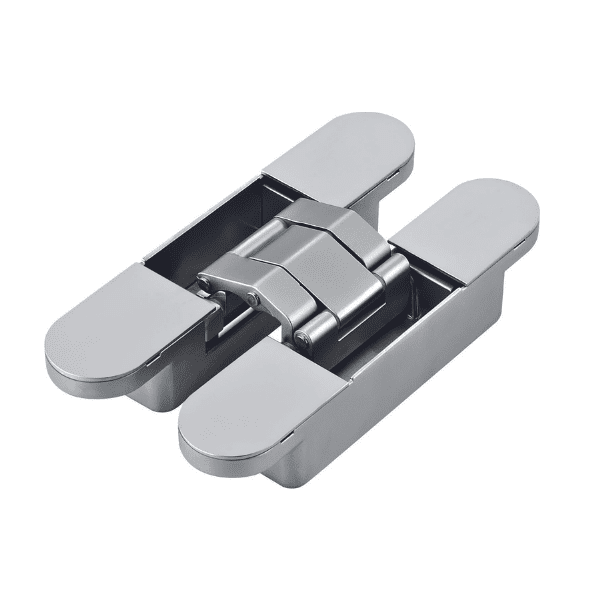

Suitable for wooden doors, for flush doors

Concealed installation

3D adjustable: vertical: ±2.5mm, horizontal: ±2mm, depth:± 1mm

Opening angle: 180°

Additional information

Load Capacity	60KG/Pair
Material	Zinc alloy
Door Thickness	36-55mm

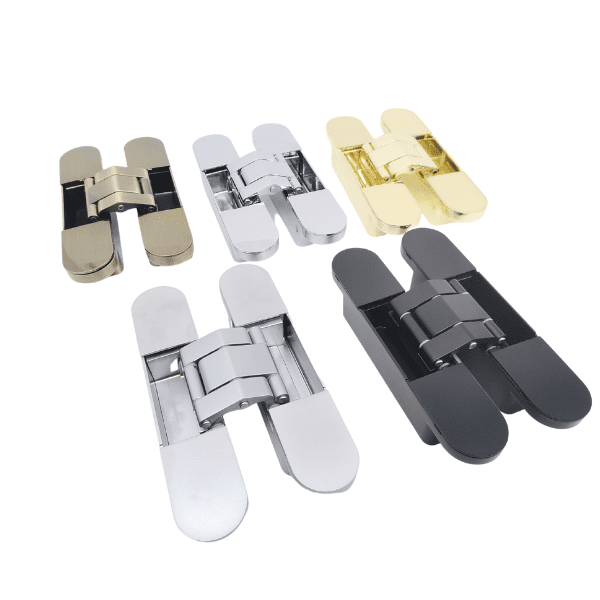

Finish	SC/SN/CP/SG/PB/BL/AB/GB

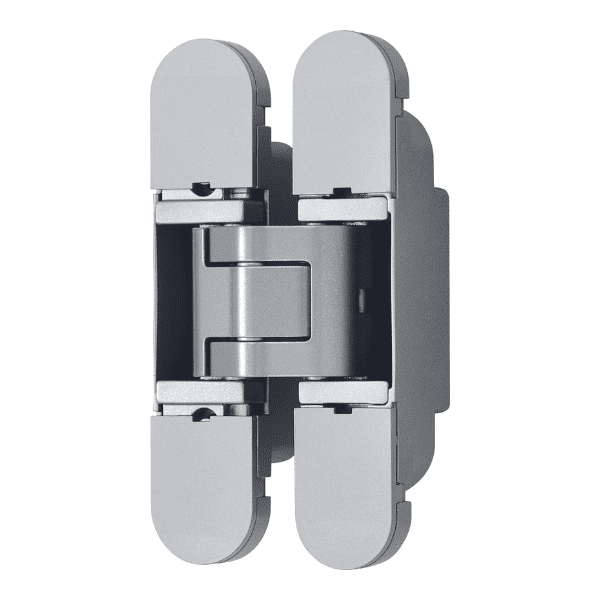

Product Details

Load capacity: 60KG/Pair

Door size:

thickness 36-55mm; Max. door width 900mm; Max. door height 2100mm

Supplied with

Hinges per package— 2pcs
SUS201 mounting screws inØ5x30mm—8pcs
Standard inner hexagon spanner,4mm—1pc
Standard inner hexagon spanner,2.5mm—1pc
Covers—8pcs

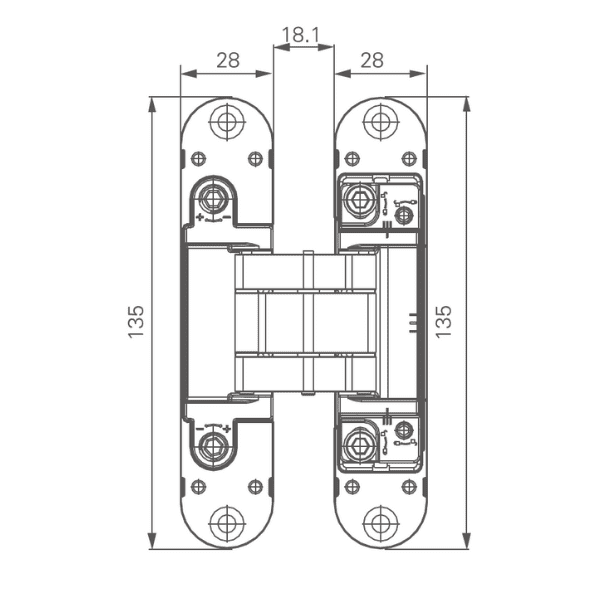

Installation

Cutter diameter: Ø28mm& Ø12mm
Door panel and frame cutting length: 135.5mm&92.5mm
Door panel cutting depth: 8.5mm&25.5mm
Door panel cutting width: 28.5mm
Door frame cutting depth: 8.5mm&25.5mm
Door frame cutting width: 28`.5mm
Screws of SUS201: Ø5mm

For Twin leaves, the additional mounting accessory is to be ordered separately.
