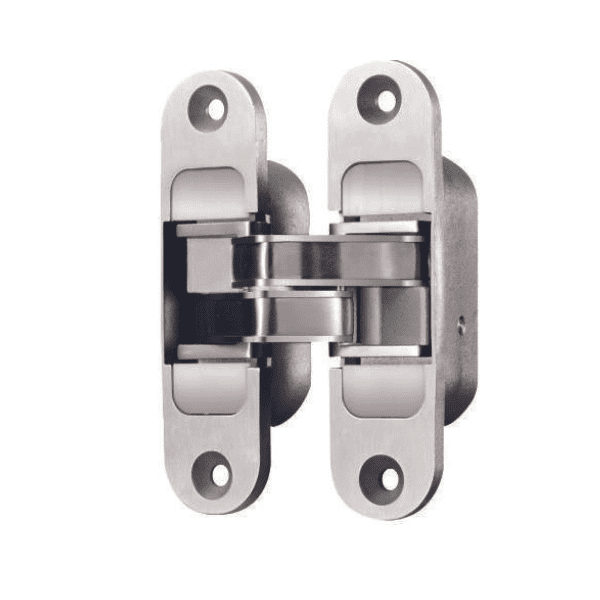

SH80

SH80

SH80 - Image 2

Suitable for wooden and Mental doors

Concealed installation

2D adjustable: vertical: ±1.5mm, depth:±1.5mm

Opening angle: 180°

Additional information

Load Capacity	80 KG/Pair
Material	Stainless steel 304
Door Thickness	40-60mm
Finish	SC/SN/CP/SG/PB/BL/AB/GB

Product Details

Load capacity: 80KG/Pair

Door size:

Door thickness 40-60mm; Max. door width 900mm; Max. door height 2100mm

Supplied with

Hinges per package— 2pcs
SUS201 mounting screws —8pcs
Standard inner hexagon spanner,S3/S4—1pc

Installation

Cutter diameter: Ø30mm
Door panel and frame cutting length: 112mm&70mm
Door panel and frame cutting depth: 6mm&38mm
Door panel and frame cutting width: 29.5mm
Screws of SUS201: Ø5mm
