The lock cylinder is the essential component that controls the locking and unlocking mechanism of a lock. As a core part of the locking system, it works in conjunction with the key to rotate and drive the locking bolt, securing or releasing the lock. The primary function of the lock cylinder is to manipulate the square tongue of the mortise lock and engage the inclined tongue to achieve the locking and unlocking process.

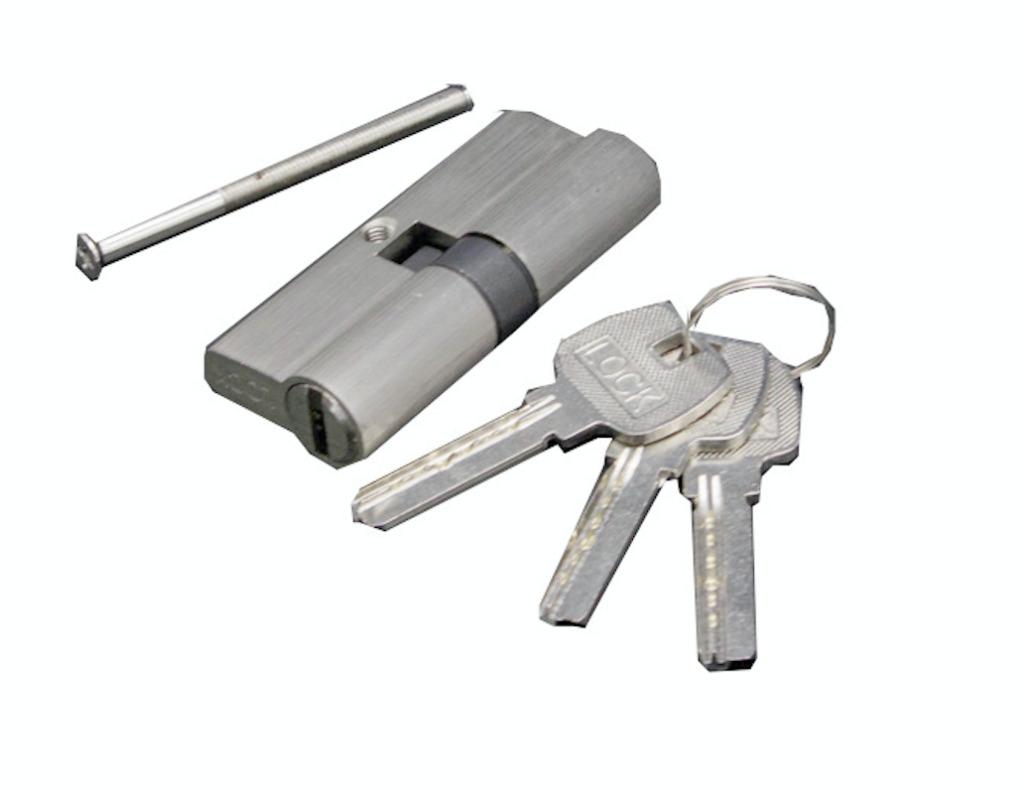

Different locking systems have distinct structural variations. In the case of American lock cylinders, the locking mechanism typically features a tailpiece and a cam. Conversely, European-style lock cylinders are characterized by a middle cam design, which plays a crucial role in the operation of the lock.
This document focuses on the unlocking mechanism, using the European-style lock cylinder as the primary reference.
1. Structure of the Lock Cylinder
The internal structure of a lock cylinder consists of several key components that enable its operation:
- Lock Cylinder Body: This is the outer casing of the lock core, which houses internal components and provides structural integrity.
- Lock Cylinder Center Body: A rotatable core inside the cylinder body that interacts directly with the key to initiate the locking or unlocking process.
- Shear Line: The interface between the lock cylinder body and the center body. The correct alignment of pins along this shear line determines whether the lock can be rotated or remains in a locked state.
- Pin Grooves: Both the lock cylinder body and the center body contain pin grooves that house the pins and springs essential for the locking mechanism.
- Pins and Springs: The pin system comprises upper pins, lower pins, and springs. The springs apply pressure to the pins, ensuring they remain in a default position unless the correct key is inserted.
2. Operation Principle of the Lock Cylinder
The lock cylinder operates based on the precise alignment of pins along the shear line. This mechanism ensures security and prevents unauthorized access.
Unlocking with the Correct Key
When the correct key is inserted into the lock:
- The key’s grooves align the upper and lower pins in the pin slots from position 1 to N.
- The gap between the upper and lower pins matches the shear line between the lock cylinder body and the center body.
- With all the pins aligned correctly along the shear line, the lock cylinder center body is free to rotate.
- As a result, the lock is released, and the door can be opened.
Failed Unlocking with an Incorrect Key
If an incorrect key is used:
- The key grooves do not match the required pin alignment.
- The upper and lower pins fail to align along the shear line.
- The pins obstruct the rotation of the lock cylinder center body.
- As a result, the lock remains engaged, preventing unauthorized access.
3. Application of Lock Cylinders in Mortise Locks
The lock cylinder is installed within a mortise lock, which is typically mounted on doors. When the door is closed, the latch mechanism secures it in place. The door remains locked as long as the bolt within the lock core is engaged within the mortise lock structure. By rotating the key to retract the bolt, the door can be unlocked, ensuring secure access control.
4. Security and Practicality of Lock Cylinders
Lock cylinders are designed with complex internal mechanisms to enhance security and reduce the chances of unauthorized access. The intricate pin system significantly lowers the probability of mutual opening (where one key can open multiple locks), increasing the resistance to picking and unauthorized tampering.
- Enhanced Security: The sophisticated design of lock cylinders improves the level of protection, making them highly resistant to picking and forced entry.
- Ease of Installation: Lock cylinders are straightforward to install and compatible with a variety of doors, making them a practical choice for different buildings.
- Versatile Applications: Lock cylinders are ideal for use in various types of structures, including residential buildings, public institutions, industrial facilities, healthcare centers, and educational establishments.
SDH’s lock cylinders have undergone rigorous testing and have passed EN1303 and DIN 18252 safety standards. These certifications ensure that their products meet high-security requirements for different applications. Additionally, D&D provides comprehensive solutions for access control, offering safe, convenient, and reliable locking configurations tailored to customers’ needs.
