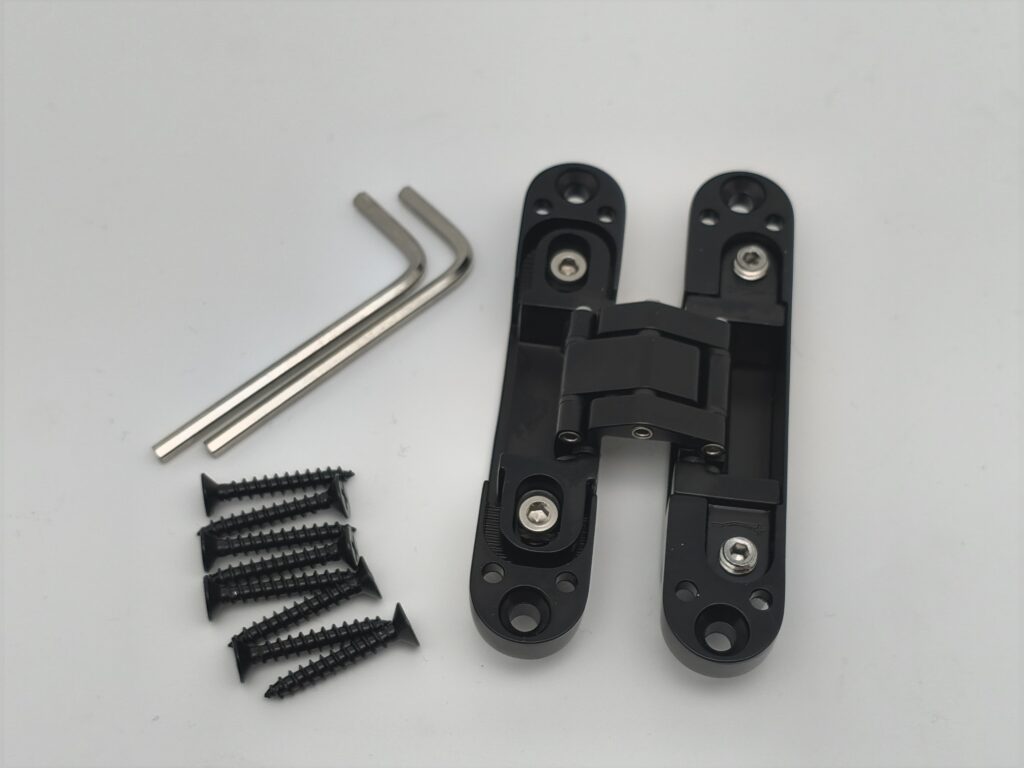

CH15A – Concealed hinge specially developed for cabinet doors – In-depth analysis of new products

When it comes to cabinet hinges, you will definitely think of cupboard hinges. This is the most commonly used hinge for cabinet doors on the market. Although part of this hinge is hidden in the frame, a large part is exposed to the outside, which can easily scratch clothes, skin, etc. Poor quality hinges can also rust and break. We investigated the market and developed a concealed hinge suitable for lightweight applications, including cabinet doors, CH15A. I will introduce its specifications in detail in this blog.

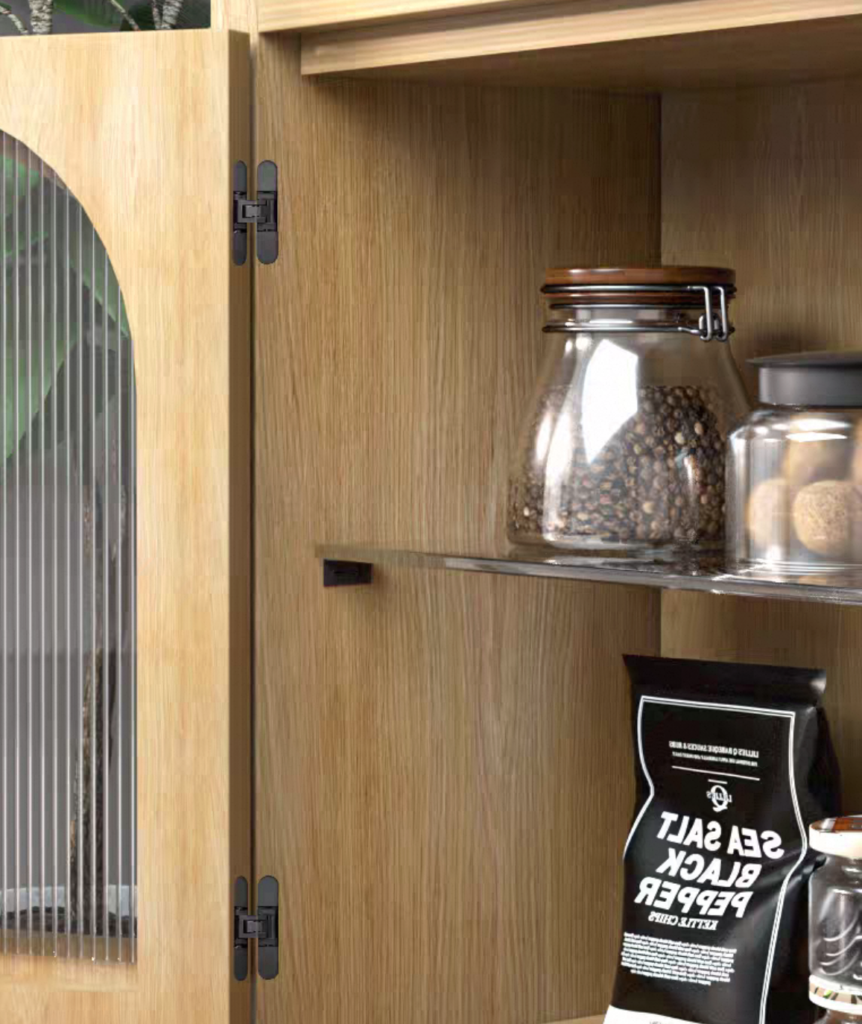

Application

For unrebated residential doors

wardrobe doors

cabinet doors

folding doors

folding screens

Material

Zinc alloy material-precise and beautiful, heavy and solid, strong and durable

Technical Data

  • Load capacity: 15kg(2 pcs)
  • Door thickness: 24-40mm
  • Max. door height: 1500mm
  • Max. door width: 600mm
  • Max. opening angle: 180°

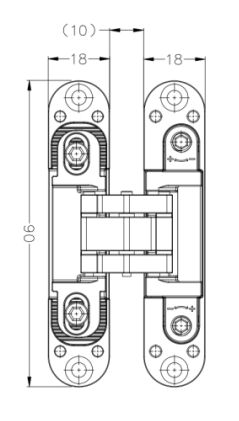

Size:

length: 90mm

width: 18*18mm

hinge gap:10mm

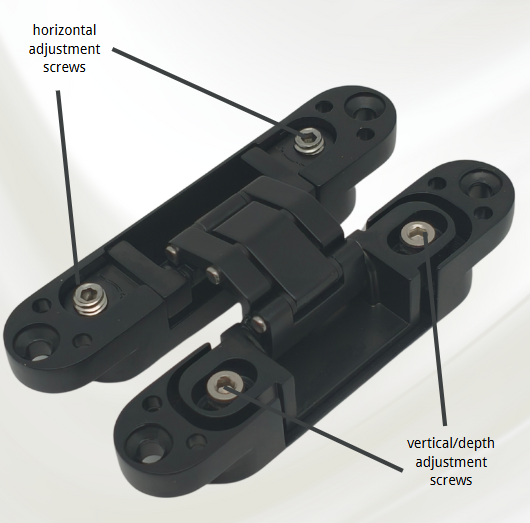

Adjustment

  • Vertical adjustment: ±2.5mm
  • Horizontal adjustment: ±1.5m
  • Compression adjustment: ±1mm

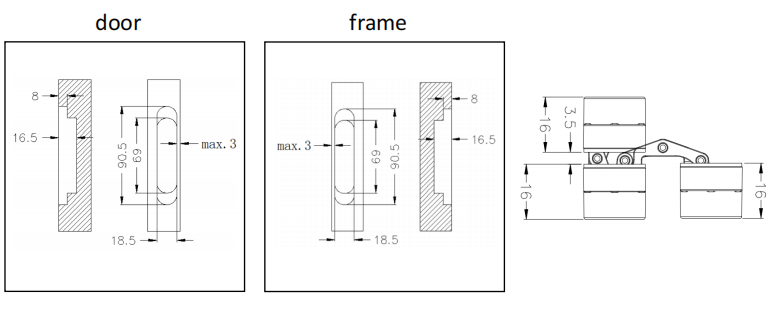

Routing data

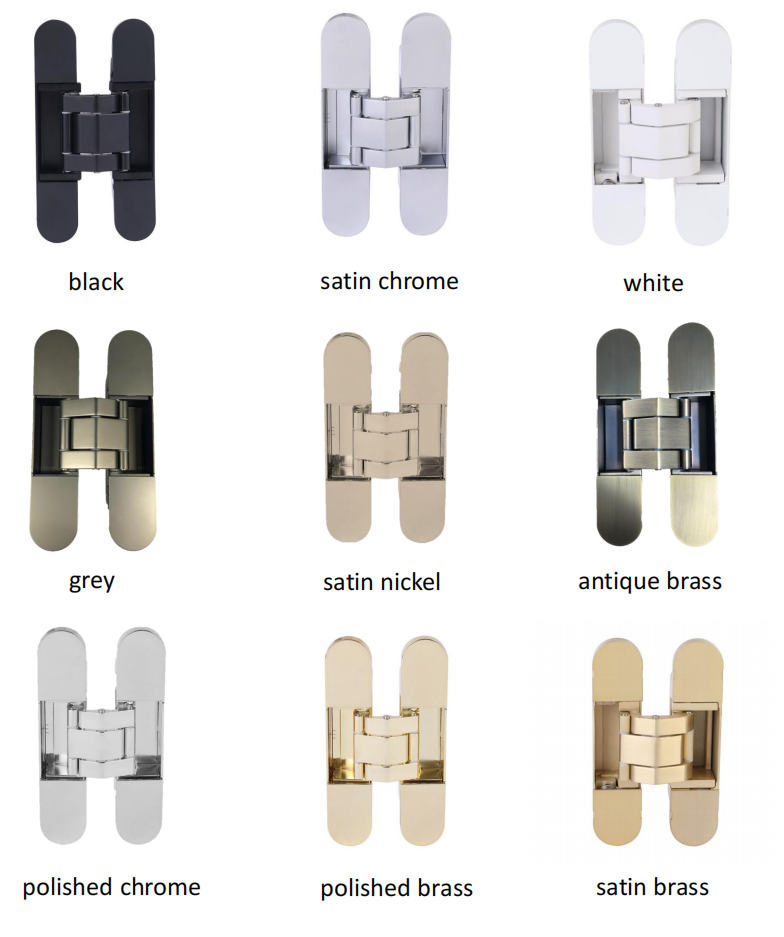

Finishes

Advantages

  1. Integrated one-piece casting with reinforced load-bearing capacity.
  2. Silent Smooth Operation with Optimized Structure
  3. Made of zinc alloy die-casting, durable and strong in load-bearing capacity

Contact to get samples to test
