With the continuous evolution of architectural hardware, modern lock cylinders are no longer just about locking and unlocking. They now integrate smart functional mechanisms that enhance both security and convenience.
Two of the most common examples are the AB key system and the Master Key System — both designed to solve real-world challenges in property management, renovation, and large-scale building operations.
In this article, we’ll explore how AB key and master key cylinders work, their differences, and why these systems have become essential in modern door hardware.
What Is an AB Key Cylinder?
The AB key cylinder (also known as a construction key system) is a clever lock mechanism that uses two types of keys:
- A key (Construction Key) – used temporarily during the construction or renovation phase.
- B key (Master or Owner Key) – used permanently after the property is handed over to the owner.
How It Works

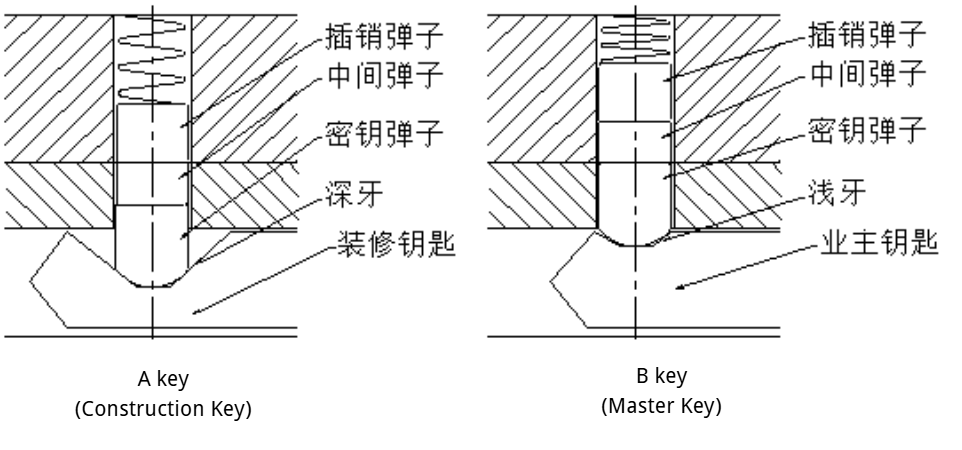

Inside an AB key cylinder, the key bittings (tooth depths) of the A and B keys are slightly different. This difference interacts with an intermediate pin or steel ball located between the driver and key pins.
When the A key is used during the construction stage, it aligns the pins just enough for the lock core to rotate, allowing workers to open and close doors.
However, once the B (owner) key is inserted and turned for the first time, it pushes the intermediate pin or ball into a special “trap hole” inside the plug. From that moment, the A key can no longer align the pins properly — it becomes permanently invalid.
In simple terms, the first use of the owner key “locks out” the construction key forever, ensuring that no one who had access during installation or renovation can open the door later.
Advantages
- Guarantees security handover from builder to owner.
- No need to replace cylinders after construction.
- Cost-effective and highly reliable.
The ABC Key System: A Functional Upgrade
The ABC key cylinder follows the same working principle as the AB key system but adds a third stage for even greater flexibility.
In this version, the trap groove is not located inside the plug, but rather on the C key itself.
When the C key is inserted and rotated, a small steel ball or intermediate pin becomes lodged in the groove on the key and is removed from the cylinder as the key is withdrawn. This action effectively resets or finalizes the system, depending on the design.
This system is often used when multiple transitions are required — for example, from construction to management, and then to the final owner stage.
What Is a Master Key System?
A master key system (also called a keyed-alike management system) allows one key to open multiple locks, each of which can also be operated by its own unique key.
This structure is widely used in hotels, office buildings, schools, hospitals, and factories, where different levels of access control are required.
How It Works
Inside each master key cylinder, certain pairs of driver and key pins are separated by an intermediate pin — a design known as the “add-ball method” (or multi-level pinning).
The height difference between the master key cut and the sub-key cut matches the length of the intermediate pin, allowing both keys to align the shear line and rotate the plug.
For example:
- The guest key can open only one room.
- The floor key can open all rooms on the same floor.
- The manager’s key can open every door in the entire building.

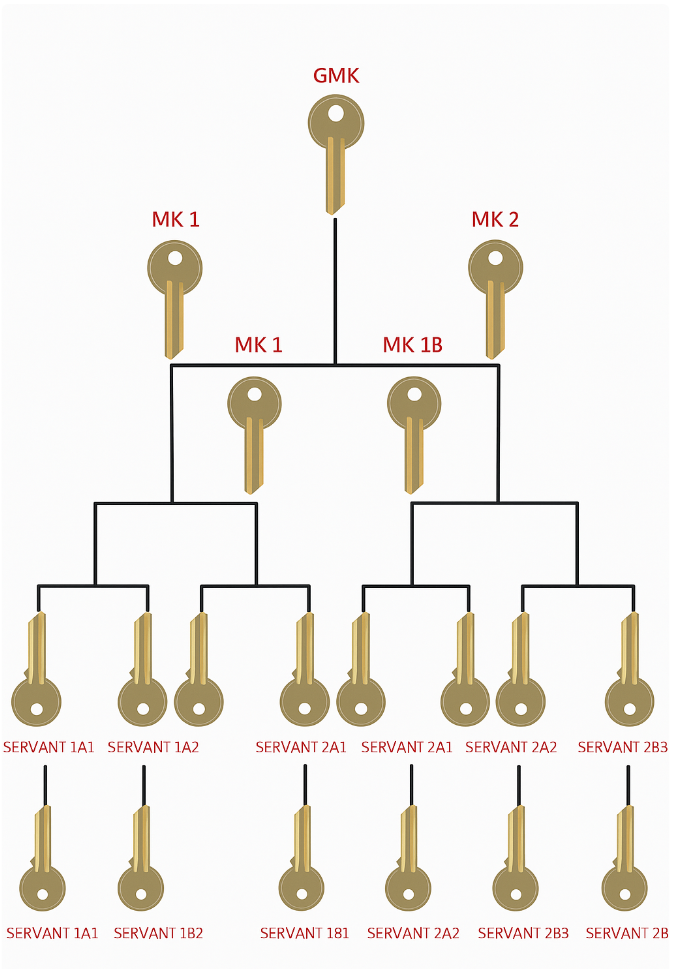

In larger facilities, a master key system can have up to five hierarchical levels, such as:
Grand Master Key (GMK) → Master Key (MK) → Sub-Master Key (SMK) → Group Key → Individual Key.
This layered control system combines convenience and security, reducing the need to carry multiple keys while maintaining strict access management.

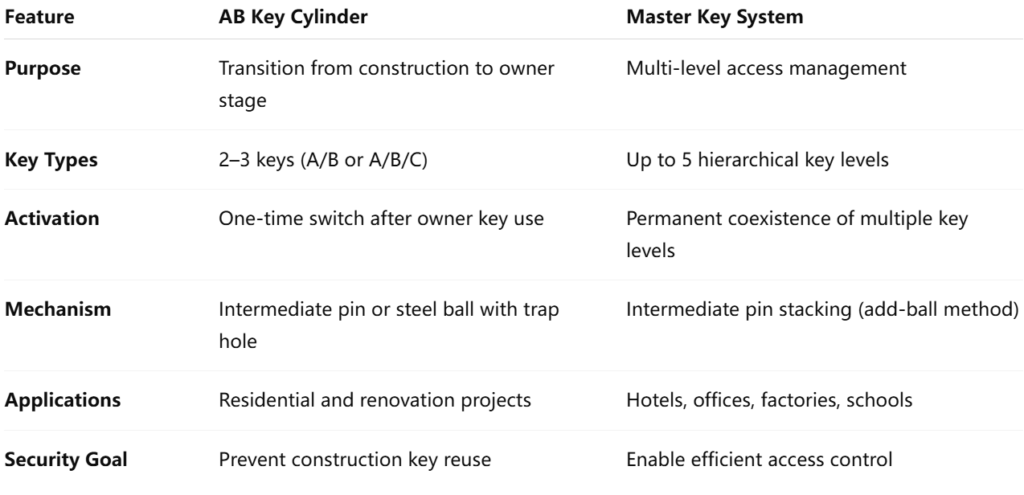

Comparison: AB Key vs. Master Key System
Both systems demonstrate how precise mechanical design can solve practical security challenges. While AB keys focus on ownership transfer safety, master key systems emphasize hierarchical management.
SDH Hardware’s Expertise in Functional Cylinders

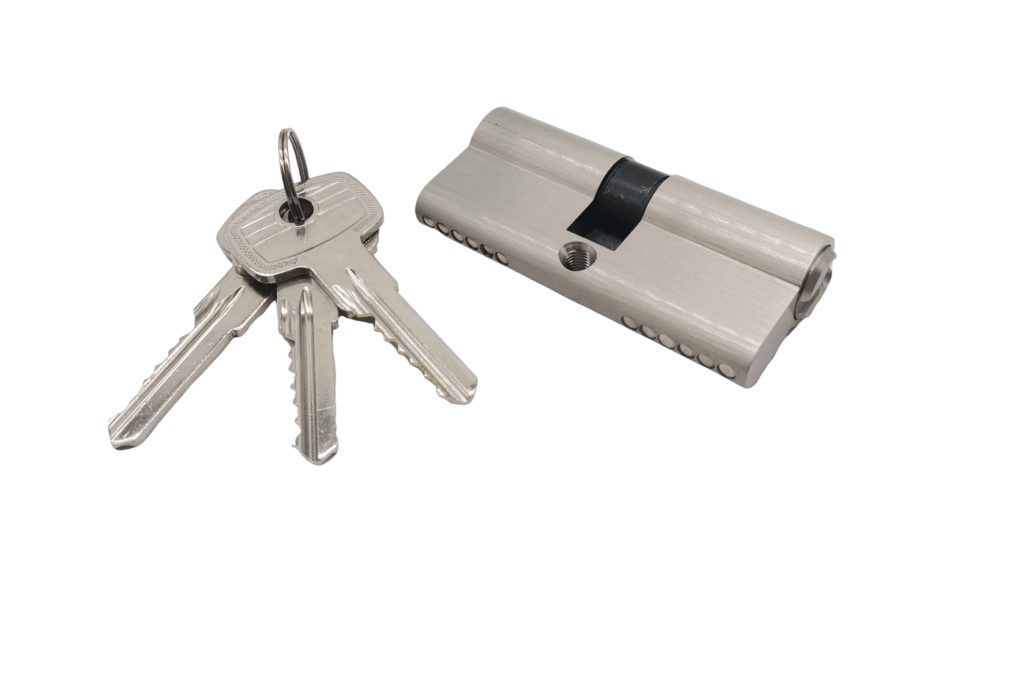

At SDH Hardware, we specialize in manufacturing Euro profile cylinders that comply with the DIN 18252 dimensional standard and meet the EN 1303 performance requirements for mechanical cylinders.
Our product range includes:
- AB key and ABC key cylinders for residential and renovation projects
- Master key systems for commercial and institutional buildings
- High-security cylinders with anti-pick, anti-drill, and anti-bump protection
Each cylinder is precisely machined from brass, stainless steel, or other high-grade materials, ensuring durability, accuracy, and smooth operation.
We also provide custom keying options and technical support tailored to your project needs.
📧 Contact: abby.lee@euprotek.com
📱 Tel: +86 13605404113
Conclusion
Both AB key cylinders and master key systems play vital roles in modern architectural hardware.
The AB system provides a secure and seamless handover from construction to ownership, while the master key system enables efficient multi-level access control in complex facilities.
As building design evolves toward smarter, safer environments, these intelligent mechanical solutions continue to prove that security starts from the core — the cylinder itself.
