CB80 door concealed hinge

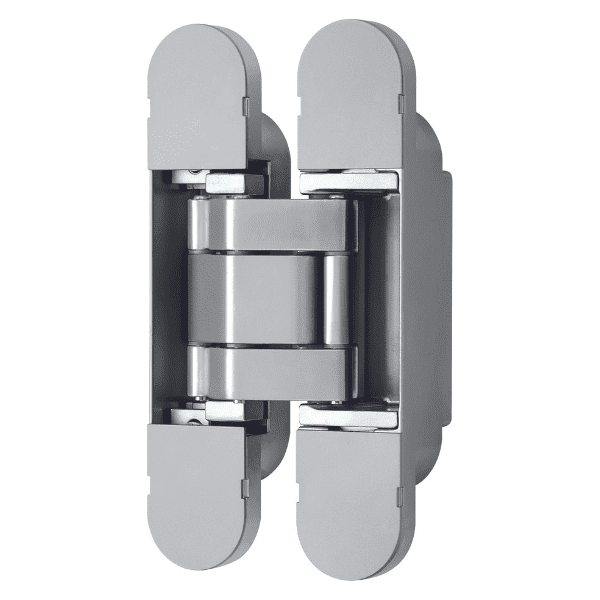

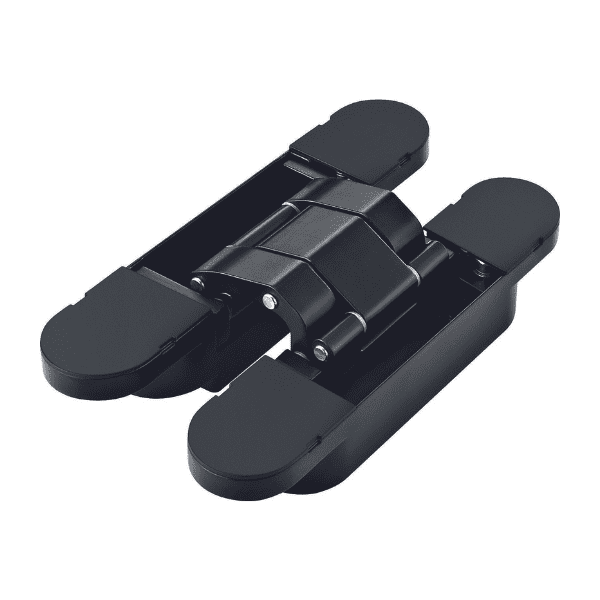

CB80-BLK

Suitable for wooden doors, for flush doors

Concealed installation

3D adjustable: vertical: ±2mm, horizontal:-2mm/+4mm, depth:±1mm

Opening angle: 180°

Additional information

Load Capacity	80 KG/Pair
Material	Zinc alloy
Door Thickness	40-60mm
Finish	SC/SN/CP/SG/PB/BL/AB/GB

Product Details

Load capacity: 80KG/Pair

Door size:

thickness 40-60mm; Max. door width 900mm; Max. door height 2300mm

Supplied with

Hinges per package— 2pcs
SUS201 mounting screws inØ5x30mm—16pcs
Standard inner hexagon spanner,4mm—1pc
Covers—8pcs

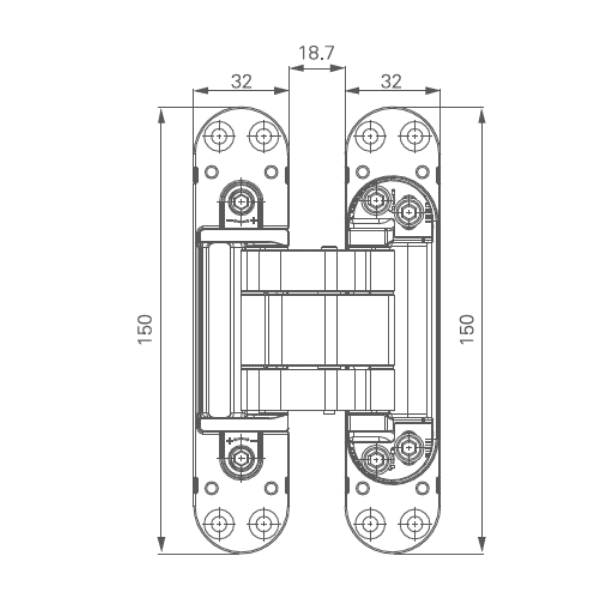

Installation

Cutter diameter: Ø32mm
Door panel and frame cutting length: 150mm&101mm
Door panel cutting depth: 9mm&32.5mm
Door panel cutting width: 32.5mm
Door frame cutting depth: 9mm&26.5mm
Door frame cutting width: 32.5mm
Screws of SUS201: Ø5mm

For Twin leaves, the additional mounting accessory is to be ordered separately.
