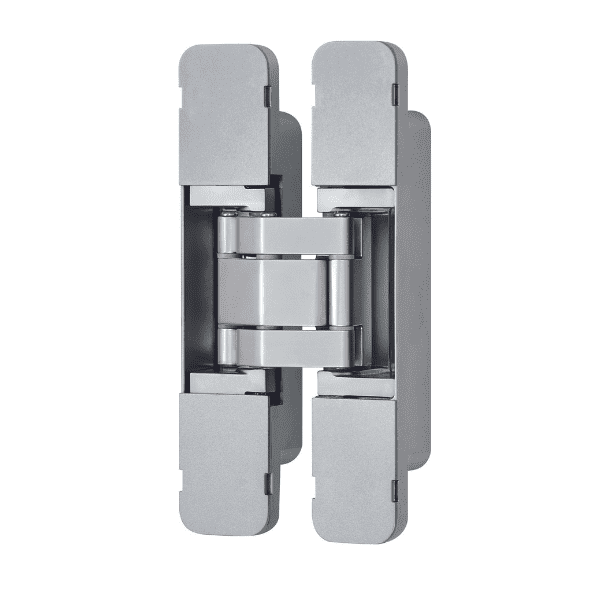

CH40S 3D

CH40S 3D

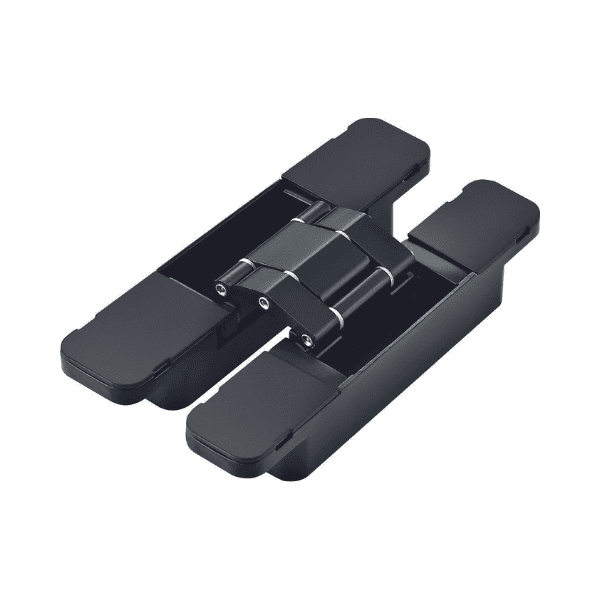

CH40 3D BLK

Suitable for wooden doors, for flush doors

Concealed installation

3D adjustable: vertical: ±2mm, horizontal:-2mm/+3mm, depth:±1mm

Opening angle: 180°

Additional information

Load Capacity	40 KG/Pair
Material	Zinc alloy
Door Thickness	29-45mm
Finish	SC/SN/CP/SG/PB/BL/AB/GB

Product Details

Load capacity: 40KG/Pair

Door size:

thickness 29-45mm; Max. door width 850mm; Max. door height 2100mm

Supplied with

Hinges per package— 2pcs
SUS201 mounting screws inØ5x30mm—8pcs
Standard inner hexagon spanner,4mm—1pc
Covers—8pcs

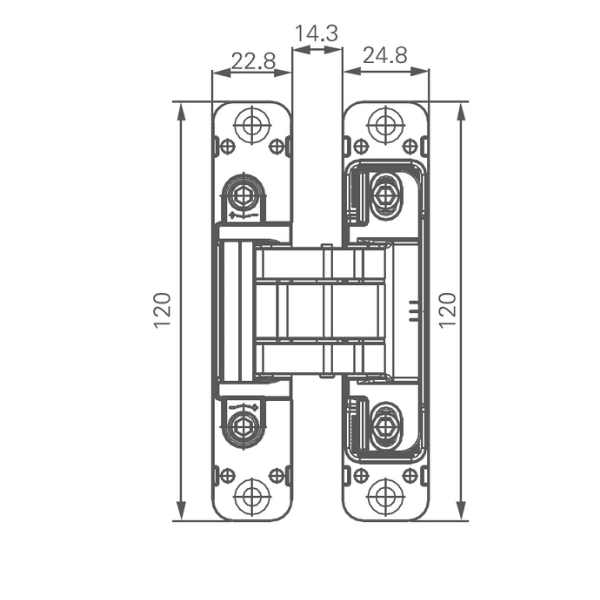

Installation

Cutter diameter: Ø12mm
Door panel and frame cutting length: 120.5mm&88.5mm
Door panel cutting depth: 7mm&20.5mm
Door panel cutting width: 23.5mm
Door frame cutting depth: 7mm&20.5mm
Door frame cutting width: 25.5mm
Screws of SUS201: Ø5mm

For Twin leaves, the additional mounting accessory is to be ordered separately.
