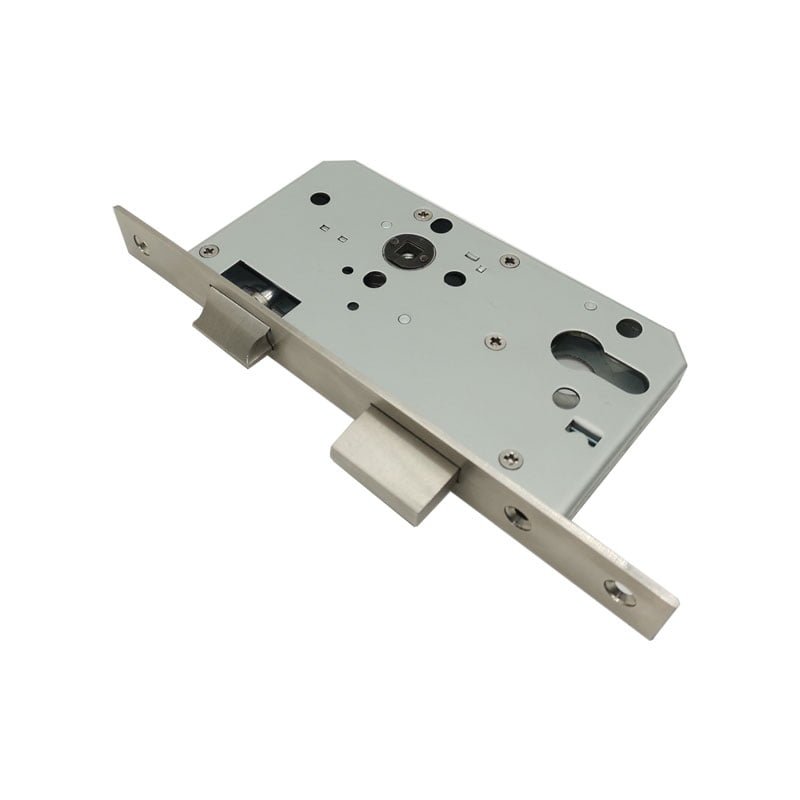

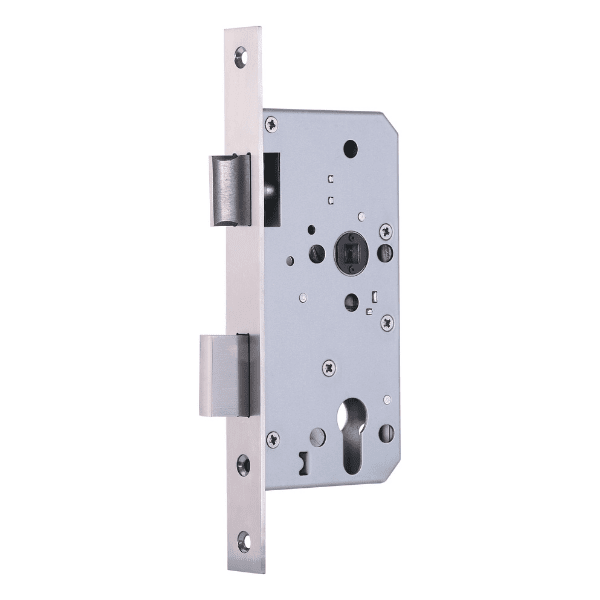

Escape lock-72ZE

According to EN12209, DIN18251-1

Latchbolt, forend and strike plates made of SUS304

Suitable for sprung and most unsprung lever handles

Prepared for profile cylinders

With key action, deadbolt 1-turn

Can press handle to open the door from inside at any time

Spilit spindle available on request

Additional information

C-T-C Distance

72 mm

Backset

55/60mm

Forend Width

20/22/23/24 mm

Forend Type

Round head / Square head

Finish

SSS/AB/AC/Gold PVD/BL

Product Details

Technical Information:

C-T-C Distance:72mm

Backset: 55/60 mm

Forend: 235mm*20/22/23/24mm*3mm;  Round / Square Head

Latch bolt: SUS304 casting , reversable,  200,000 cycles test

Deadbolt: SUS 304, 1-turn (20mm),   50,000 cycles test

Lockcase: Steel galvanised with blue coating, SECC,  thickness 1.5mm

Follower: 8*8mm, SUS304

Striking plate: SUS304, thickness 1.5mm

Accessories: plastic box (PE material) & fixing screws (for wooden door or steel door optional)

Package: brown inner box and brown carton box (colour box available)



Features:

          • Mortise lock can be operated from both sides by lever handles to withdraw the latch
          • People can always press the handle to withdraw the latch and deadbolt from inside; but have to use cylinder to open the door from outside when door locked.
          • 8mm  follower for spilt spindle
          • Latch direction can be reversed quickly on site
          • Escape direction can be changed easily on site

     Successfully tested to EN12209
