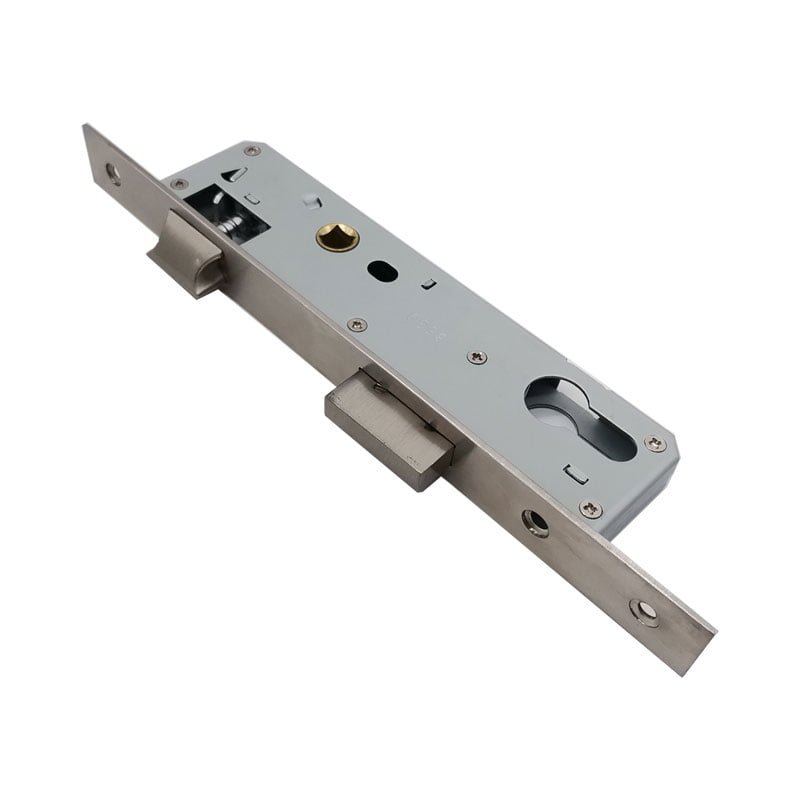

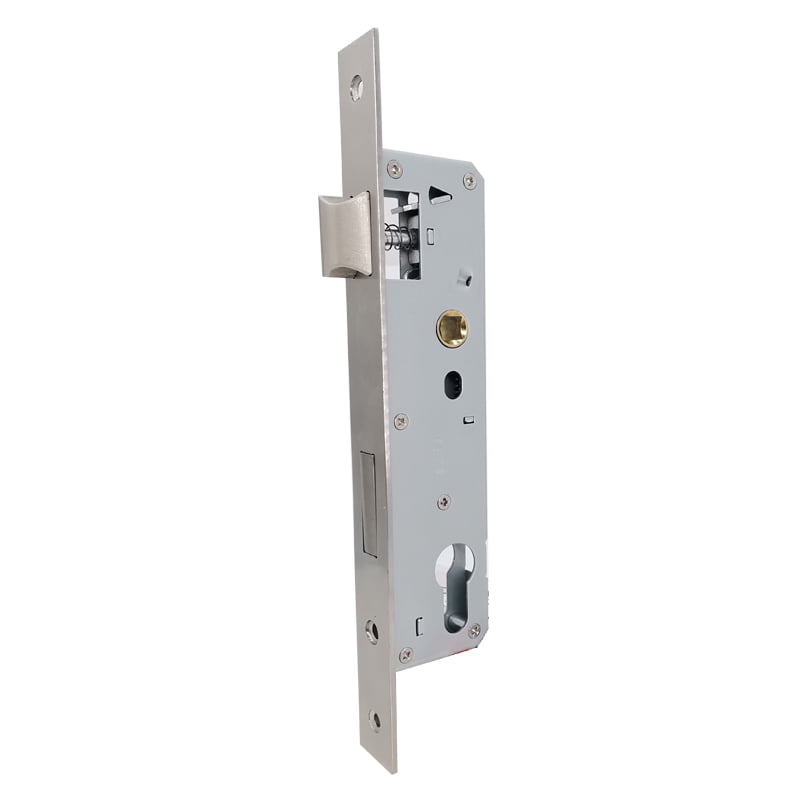

Narrow lock-85K

According to EN12209

Forend and strike plates made of Stainless steel

Latch and deadbolt, made of zinc alloy

Prepared for profile cylinders

With key action, deadbolt 1-turn

Additional information

Technical Information:

C-T-C Distance:85mm

Backset: 20/25/30/35mm

Forend: 240mm*22mm*2.5mm; Square Head

Latch bolt: Zinc alloy , reversible, 200,000 cycles test

Deadbolt: Zinc alloy, 1-turn, 50,000 cycles test

Lockcase: Steel galvanized with blue coating, SECC, thickness

Follower: 8*8mm, steel galvanized

Striking plate: Stainless steel

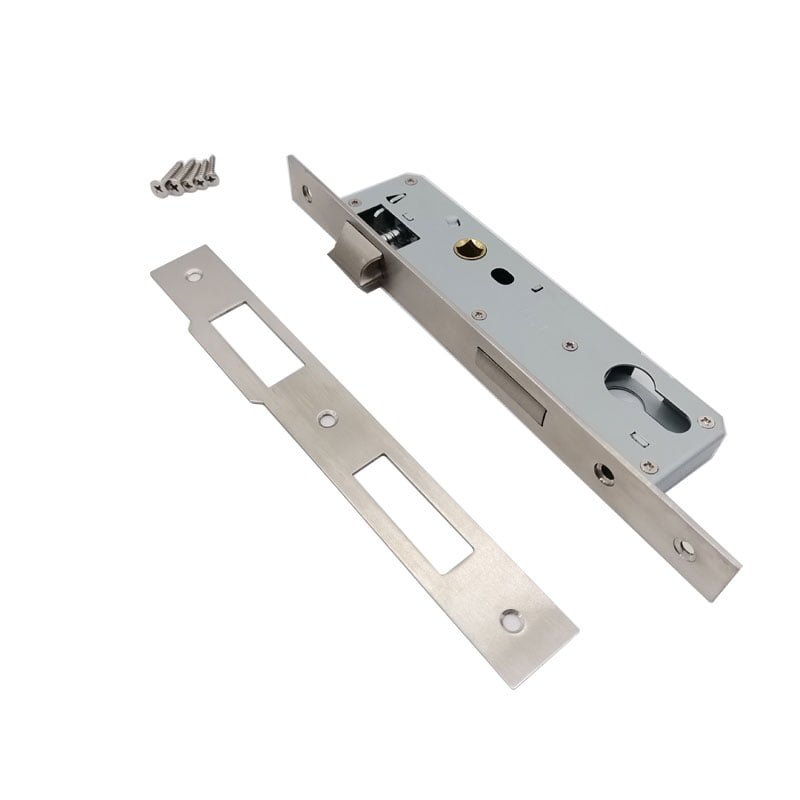

Accessories: Striking plate & fixing screws (for wooden door or steel door optional)

Package: White inner box and brown carton box (colour box available)

Features:

- - - - Mortise lock can be operated from both sides by lever handles to withdraw the latch

- - - - 8x8mm smooth follower
- - - - Latch direction can be reversed quickly on site
