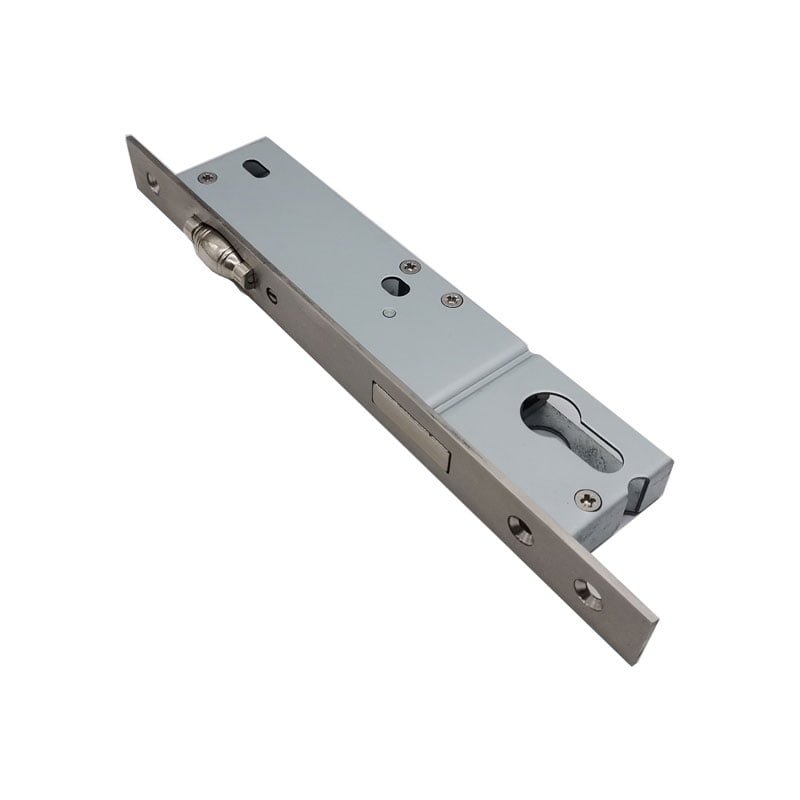

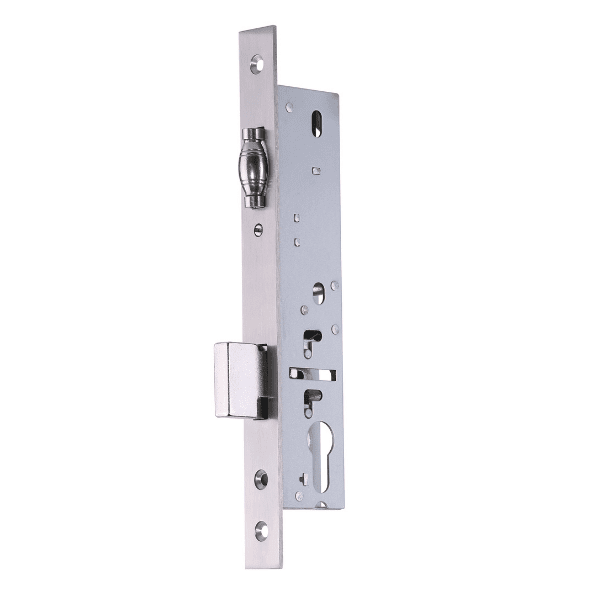

Narrow lock-92KP

According to EN12209

Forend and strike plates made of SUS304

Roller and deadbolt, made of zinc alloy

Prepared for profile cylinders

With key action, deadbolt 2-turn

Additional information

C-T-C Distance

92 mm

Backset

30 mm

Forend Width

24 mm

Forend Type

Square head

Finish

SSS/AB/AC/Gold PVD/BL

Product Details

Technical Information:

C-T-C Distance:92mm

Backset: 30mm

Forend: 255mm*24mm*3mm;  Square Head

Roller: Zinc alloy,  200,000 cycles test

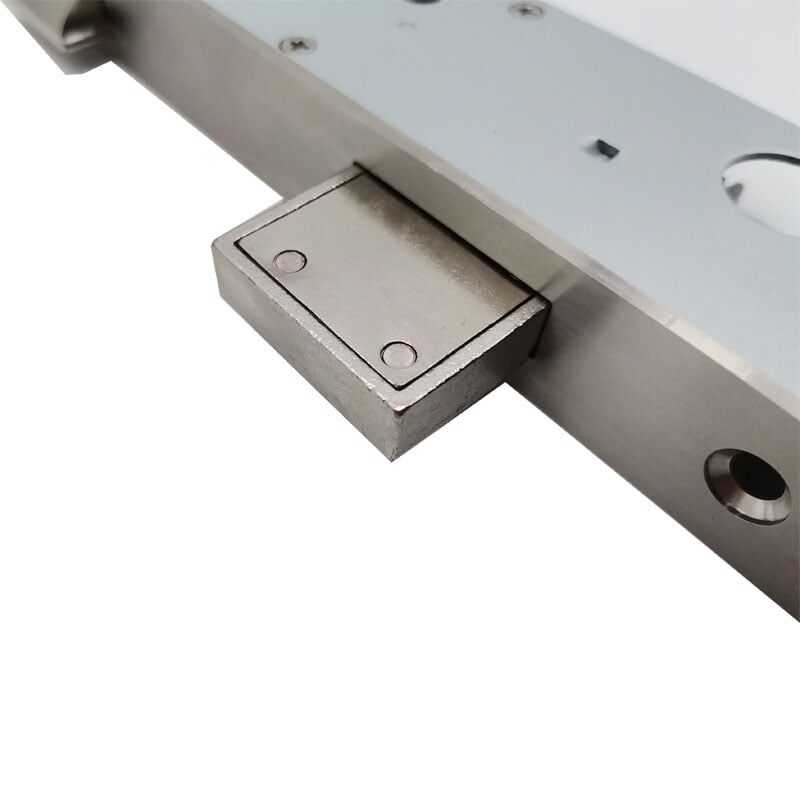

Deadbolt: Zinc alloy, 2-turn (25mm),   50,000 cycles test

Lockcase: Steel galvanized with blue coating, SECC,  thickness 1.5mm

Striking plate: SUS304, thickness 1.5mm

Accessories: plastic box (PE material) & fixing screws (for wooden door or steel door optional)

Package: white inner box and brown carton box (colour box available)
