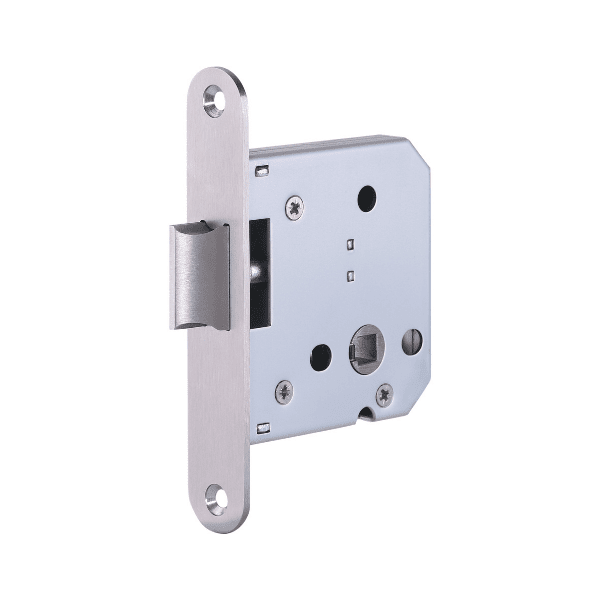

Passage lock-55ZL

According to EN12209-Grade3

Latchbolt, forend and strike plates made of SUS304

Suitable for sprung and most unsprung lever handles



Additional information

Backset

55mm

Forend Width

20/22/23/24 mm

Forend Type

Round head / Square head

Finish

SSS/AB/AC/Gold PVD/BL

Product Details

Technical Information:

Backset: 55mm

Forend: 138mm*20/22/23/24mm*3mm;  Round / Square Head

Latch bolt: SUS304 casting, reversible,  200,000 cycles test

Lockcase: Steel galvanized with blue coating, SECC,  thickness 1.5mm

Follower: 8*8mm, SUS304

Striking plate: SUS304, thickness 1.5mm

Accessories: plastic box (PE material) & fixing screws (for wooden door or steel door optional)

Package: brown inner box and brown carton box (colour box available)



Features:

          • Mortise lock can be operated from both sides by lever handles to withdraw the latch
          • 8mm smooth follower, square spindle gripping feature
          • Latch direction can be reversed quickly on site
          • CE Marked: Declaration of conformity available upon request
          • Fire-rated:  suitable for 90 minutes timber fire doors and 240 minutes steel fire doors.



Successfully tested to EN12209

Classification Code: 3 X 8 1 0 G – B 0 2 0
