What type of hinge do you use for a hidden door?

A hinge for a hidden door can look simple on a drawing, but the wrong choice can create serious production problems. Poor hinge selection can lead to slotting mismatch, door sagging, frame rubbing, and weak closing performance.¹ I usually solve this by matching the hinge type to the door structure, load, thickness, frame design, and machining process.

For most standard hidden doors, I use a 3D adjustable concealed hinge because it is mortised into the door leaf and frame, so it stays invisible when the door is closed.² For heavier or larger hidden doors, I consider a pivot hinge because top-and-bottom support can carry the door more effectively.³

The best answer is not only “use a hidden hinge.” I have seen many door factories run into problems because they selected the hinge by name only. The better approach is to compare the door structure, machining requirements, adjustment needs, and load conditions before cutting the first slot.

What is the best hinge for a hidden door?

A hinge for a hidden door creates problems when buyers focus only on invisibility. The door may look clean in the showroom, but poor alignment can appear after installation. I prefer to start with the door specification, then choose the hinge system that supports both appearance and performance.

For most standard hidden doors, the best hinge is a 3D adjustable concealed hinge. It hides inside the door and frame when closed, while its adjustment function helps correct vertical, horizontal, and depth alignment after installation. For larger or heavier doors, a pivot hinge may be more suitable.

Why I usually start with a 3D adjustable concealed hinge

In factory discussions, I often explain that a hidden door is not defined only by the visible surface. It is defined by the relationship between the door leaf, frame, wall finish, opening direction, and hinge system. A 3D adjustable concealed hinge fits this concept well because it is designed to disappear into the structure.

A typical 3D adjustable concealed hinge is mortised into:

• The door leaf
• The door frame
• The hinge-side structural area
• The prepared pocket or slot

When the door closes, the hinge body is not visible from the outside. This gives the hidden door its clean, flush appearance.

However, I do not choose this hinge type only because it is invisible. I choose it because the adjustment function gives the installer and door factory more control after installation. This matters because even a small error in machining, wall flatness, or frame positioning can change the final gap.

What “3D adjustable” usually means

A 3D adjustable concealed hinge normally allows adjustment in three directions:⁴

This adjustment is especially useful for hidden doors because visual tolerance is low.⁵ A standard door can hide small inconsistencies with trims or visible hardware. A hidden door usually cannot.

Where the selection can go wrong

I have seen door factories select a hinge for a hidden door based only on a catalog photo. That creates risk. The factory may later find that:

• The hinge pocket is too deep for the door thickness.
• The frame does not have enough material for mortising.
• The opening angle does not match the project requirement.
• The load rating was considered without checking door height.
• The screw positions conflict with the internal structure of the door.

Because of these risks, I always suggest sample testing before mass production.⁶ At SDH Hardware, we usually review the door thickness, frame profile, door material, and machining plan before recommending a concealed hinge model. I treat certification documents, drawings, and test reports as documents buyers should request and verify, especially for fire-rated or CE-related project requirements.⁷

When should you use a 3D adjustable concealed hinge for a hidden door?

A hinge for a hidden door should support the door after finishing, not only during factory assembly. Standard hidden doors often need precise surface alignment and clean gaps. If the hinge has no adjustment range, small production or site errors can become expensive corrections.

I use a 3D adjustable concealed hinge for a hidden door when the door is a standard swing door, the frame can accept mortising, the door thickness is suitable, and the project needs a flush, invisible hinge appearance with post-installation alignment control.

Best applications for 3D adjustable concealed hinges

A 3D adjustable concealed hinge is usually the first choice for standard hidden doors in architectural and interior door projects. It works well when the door leaf and frame are designed together from the beginning.

I usually consider this hinge type when the project has these conditions:

1. The door is a standard side-hung hidden door.
   The door opens like a normal swing door, but the hinge remains concealed.

2. The door and frame can be mortised accurately.
   The factory must cut pockets in both parts.

3. The door thickness is enough for the hinge body.
   Thin doors may not provide enough depth for safe installation.⁸

4. The frame has enough structural material.
   Aluminum, steel, wood, or composite frames must all be checked differently.

5. The project needs final gap adjustment.
   Hidden doors often require a tight visual result after wall finishing.

Why adjustment matters after installation

In real production, a door can look perfect at the factory but behave differently after installation. The wall may not be fully straight. The frame may shift slightly during fixing. The floor level may vary. The door panel may carry additional finish materials, such as veneer, laminate, acoustic layers, or fire-rated cores.

A 3D adjustable concealed hinge helps correct these issues after the door is installed. This is one of its biggest practical advantages.

For example, a door factory may machine the door accurately, but the installer may still find that the door rubs against the frame after mounting. With adjustment, the installer can move the door slightly without removing and re-machining the hinge pocket.

Key selection checks for door factories

Before choosing this hinge type, I suggest checking the following items:

I do not recommend choosing a hinge for a hidden door from one weight number alone. A short and dense solid door behaves differently from a tall lightweight panel. A heavy but thick door may accept a strong hinge well, while a thinner panel may create machining limitations.

Practical manufacturing note

From a supplier perspective, I ask for door drawings whenever possible. A drawing helps avoid assumptions. If the customer cannot provide a full drawing, I ask for at least:

• Door height
• Door width
• Door thickness
• Estimated door weight
• Frame section
• Opening direction
• Required opening angle
• Surface finish or coating
• Fire-rated or CE-related project requirements, if applicable

This information allows a more reliable hinge recommendation. It also protects the door factory from producing many panels with the wrong hinge pocket.

When is a pivot hinge for a hidden door the better choice?

A hinge for a hidden door is not always a side-mounted concealed hinge. Larger or heavier hidden doors can place high stress on the side frame. If the door panel is tall, wide, or heavy, a different support method may be needed.

A pivot hinge for a hidden door is usually better when the door is large, heavy, or designed as a feature panel. It supports the door from the top and bottom instead of only from the side, which can improve load distribution for suitable door structures.

How a pivot hinge differs from a 3D concealed hinge

A pivot hinge is a different hidden-door solution. It is usually installed at the top and bottom of the door leaf. The door rotates around a pivot point instead of swinging only from side-mounted hinges.⁹

This design can be useful when the door is:

• Taller than normal
• Wider than normal
• Heavier than normal
• Designed as a wall panel
• Built with dense core material
• Required to create a special architectural effect

A pivot hinge does not solve every hidden-door problem. It changes the engineering logic of the door system. The load path, frame preparation, floor preparation, ceiling or head-frame detail, and door clearance all need careful review.

3D concealed hinge vs pivot hinge

I like to compare these two hinge types early because they affect door production in different ways.

When I would consider pivot hardware

I consider a pivot hinge for a hidden door when the door factory tells me the door is unusually large or heavy. I also consider it when the design requires a clean wall-panel effect and the side frame cannot reasonably carry the full load.

For example, a tall decorative hidden door in a hotel corridor may have a thick panel and special finish. A normal concealed hinge may still be possible, but the factory must check the hinge capacity, frame structure, screw holding strength, and adjustment range carefully. A pivot hinge may provide a better support direction if the whole door system is designed for it.

Production risks with pivot hinges

A pivot hinge also requires careful planning. I do not recommend switching to a pivot system without reviewing the full opening structure.

Door factories should check:

1. Bottom support condition
   The floor or threshold area must accept the pivot hardware and load path.

2. Top support condition
   The head frame or ceiling-side structure must support the upper pivot.

3. Door clearance
   Pivot doors often need specific clearance at the top, bottom, and sides.¹⁰

4. Pivot location
   The pivot point changes how the door swings and how the clear opening behaves.

5. Finishing sequence
   Wall panels, flooring, and door finishes can affect final alignment.

6. Maintenance access
   Hardware should remain serviceable after project completion.

A pivot hinge for a hidden door can be excellent when selected correctly. However, it should not be treated as a simple replacement for a 3D adjustable concealed hinge. It is a different system, and it requires different machining and installation planning.

How should door factories choose the right hinge for a hidden door?

A hinge for a hidden door should be selected before the factory finalizes machining. If the hinge decision comes too late, the door factory may need to change slotting, frame sections, or even the full door design. I prefer to prevent this risk before production starts.

Door factories should choose the right hinge for a hidden door by checking door weight, height, width, thickness, material, frame structure, opening angle, mortising depth, adjustment needs, and certification requirements. The hinge supplier should confirm compatibility with drawings or samples before mass production.

Start with the door, not the hinge name

Many buyers ask me, “Which hidden hinge should I use?” I usually answer with another question: “What is the door structure?” That is because the hinge name is not enough.

A concealed hinge model may look suitable in a catalog, but the real door may have limitations. A frame may be too narrow. A door leaf may be too thin. A fire-rated core may limit machining depth. A decorative finish may increase the final door weight. These details decide whether the hinge works in production.

My basic selection checklist

I use a practical checklist when I help door factories review a hidden-door project.

Do not rely on one load number

A load number can help, but it should not control the whole decision. I have seen buyers compare hinges only by listed capacity. That method can miss important risks.

A hinge supporting a certain door weight under one test condition may not perform the same way in every application.¹² A tall door creates more leverage than a short door of the same weight. A thin door may not allow a deep hinge body. A weak frame may fail before the hinge body fails.

Because of that, I prefer to review these factors together:

• Door weight + door height
• Door thickness + hinge body depth
• Frame material + screw holding strength
• Opening angle + wall clearance
• Door finish + final installed weight
• Hinge quantity + spacing
• Adjustment range + expected site tolerance

Why supplier drawings matter

Before a factory machines a door, the hinge supplier should provide clear technical information. At SDH Hardware, we commonly support B2B customers with product drawings after order confirmation, and we can discuss slotting needs based on the selected model.

Door factories should request:

1. Hinge dimensions
2. Mortising drawings
3. Screw hole positions
4. Minimum door thickness guidance
5. Frame preparation details
6. Opening angle information
7. Surface finish options
8. Packaging and branding requirements
9. Inspection arrangement after production

For procurement teams, this information also helps compare suppliers fairly. A lower unit price may not be cheaper if the hinge causes re-machining, installation delays, or project complaints.

Supplier evaluation for hidden door hinges

When I evaluate a concealed door hinge supplier, I look beyond the catalog. I want to know whether the supplier understands door production.

A qualified supplier should be able to discuss:

• Different door structures
• Standard and custom hinge options
• Mortising and machining risks
• Quality control process
• Raw material screening
• Surface treatment consistency
• Finished product inspection
• Certification document availability
• OEM or ODM support
• Batch consistency for wholesale orders

SDH Hardware works as a factory-direct architectural hardware manufacturer in China. We focus on R&D, precision manufacturing, and global B2B supply for door manufacturers, hardware brands, and wholesalers. When I discuss hidden-door hardware with customers, I treat the hinge as one part of the full door system, not as an isolated product.

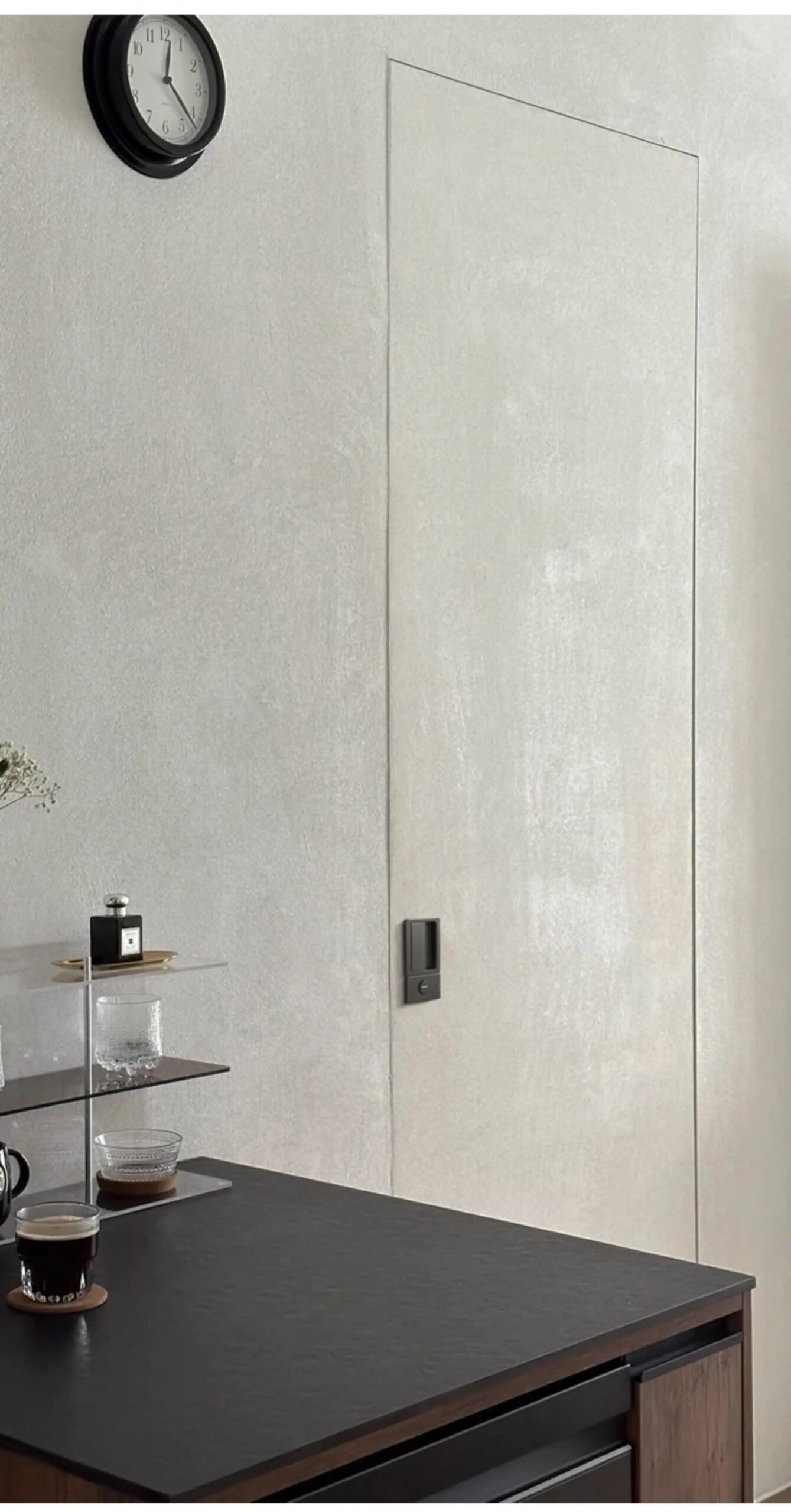

What mistakes should buyers avoid when selecting a hinge for a hidden door?

A hinge for a hidden door can fail commercially even when the hardware itself is well made. The problem often comes from wrong matching. If the door, frame, machining, and hinge are not compatible, the finished door may not close cleanly.

Buyers should avoid choosing a hidden-door hinge by appearance, price, or load rating alone. They should confirm door structure, frame compatibility, mortising depth, adjustment range, opening angle, and project documentation before placing a bulk order or machining finished doors.

Mistake 1: Treating all hidden hinges as the same

A 3D adjustable concealed hinge and a pivot hinge are not the same product. They use different installation positions, load paths, and preparation methods. A buyer should not replace one with the other without reviewing the door system.

If a door factory has already cut side mortises for concealed hinges, a pivot system will not simply fit into the same preparation. If the factory has designed a pivot door, side-mounted concealed hinges may not meet the same architectural intent.

Mistake 2: Ignoring the frame

The frame is just as important as the door leaf. A strong hinge cannot perform well if the frame cannot support it. This is especially important for hidden doors because the frame may be slim, recessed, or integrated into the wall.

I recommend checking:

• Frame depth
• Frame wall thickness
• Screw holding area
• Frame material
• Reinforcement needs
• Alignment with wall finish
• Space for adjustment tools

Mistake 3: Machining before confirming the hinge

This mistake can be expensive. Once the door factory cuts the hinge pocket, the project becomes less flexible. A different hinge model may require different depth, width, screw positions, or radius details.

I suggest confirming the hinge sample and drawing before mass slotting. If the project has special requirements, the factory should test one complete door set first.

Mistake 4: Forgetting final finishing weight

A door may gain weight after finishing. Veneer, laminate, metal sheet, acoustic material, fire-rated layers, or decorative wall panels can all affect the final load. The hinge decision should consider the finished door weight, not only the unfinished panel.

Mistake 5: Skipping document verification

For projects that mention CE certification or fire-rated requirements, buyers should verify documents carefully. I always recommend checking whether the certificate, test report, product model, and project requirement match. For application-specific compliance decisions, buyers should consult qualified professionals or project engineers.

Frequently Asked Questions

Can I use a normal butt hinge for a hidden door?

A normal butt hinge is usually not ideal for a hidden door because it remains visible when the door is closed. A 3D adjustable concealed hinge is normally better for a flush hidden-door design. However, the final choice still depends on door structure, frame design, and project expectations.

How many concealed hinges does a hidden door need?

The number depends on door height, weight, thickness, material, and hinge model. Many standard doors use two or three hinges, but hidden doors should be checked case by case. I recommend confirming hinge quantity with supplier drawings and testing a sample door before mass production.

Is a pivot hinge stronger than a concealed hinge?

A pivot hinge can provide stronger top-and-bottom support for large or heavy doors, but it is not automatically better for every hidden door. A 3D adjustable concealed hinge is often more suitable for standard side-hung hidden doors that need precise gap adjustment.

What information should I send to a hinge supplier?

You should send door height, width, thickness, estimated finished weight, material, frame drawing, opening direction, opening angle, and certification requirements. I also prefer receiving photos or CAD drawings because they help me check mortising depth, frame compatibility, and installation risks.

Do hidden door hinges need CE or fire-rated certification?

Some projects require CE or fire-rated documentation, especially in commercial or regulated markets. Buyers should verify that the certificate or report matches the exact hinge model and application. For fire-rated door systems, qualified professional evaluation is important because the full door assembly matters.

Conclusion

The right hinge for a hidden door depends on the door system, not only the word “hidden.” I usually recommend a 3D adjustable concealed hinge for standard hidden doors because it offers invisibility and practical alignment control. I consider a pivot hinge for heavier or larger doors that need top-and-bottom support. Before production, door factories should confirm door weight, thickness, frame design, opening angle, mortising details, and certification documents. If you are developing hidden doors for wholesale or project supply, I can help you review the structure and select a suitable concealed hinge solution from SDH Hardware’s factory-direct range.
