The hinges used in public bathroom Hardware are more than just “hardware accessories”; they directly impact:
- Service Life
- Door Load-bearing Capacity
- Opening/Closing Feel
- Noise Reduction
- Overall Aesthetics
- Long-term Maintenance Costs
Choosing hinges for public bathroom Hardware comes down to five main factors: material durability, door weight, mounting style, privacy/security, and environment (especially moisture exposure).
Here’s a practical guide to selecting the right hinge type for restroom stalls and partition systems.
This is particularly true for aluminum honeycomb Hardware, where the door panels are thicker and heavier, thereby imposing more stringent requirements on the hinges.
Currently, the hinges commonly used in engineering projects primarily fall into the following four categories:

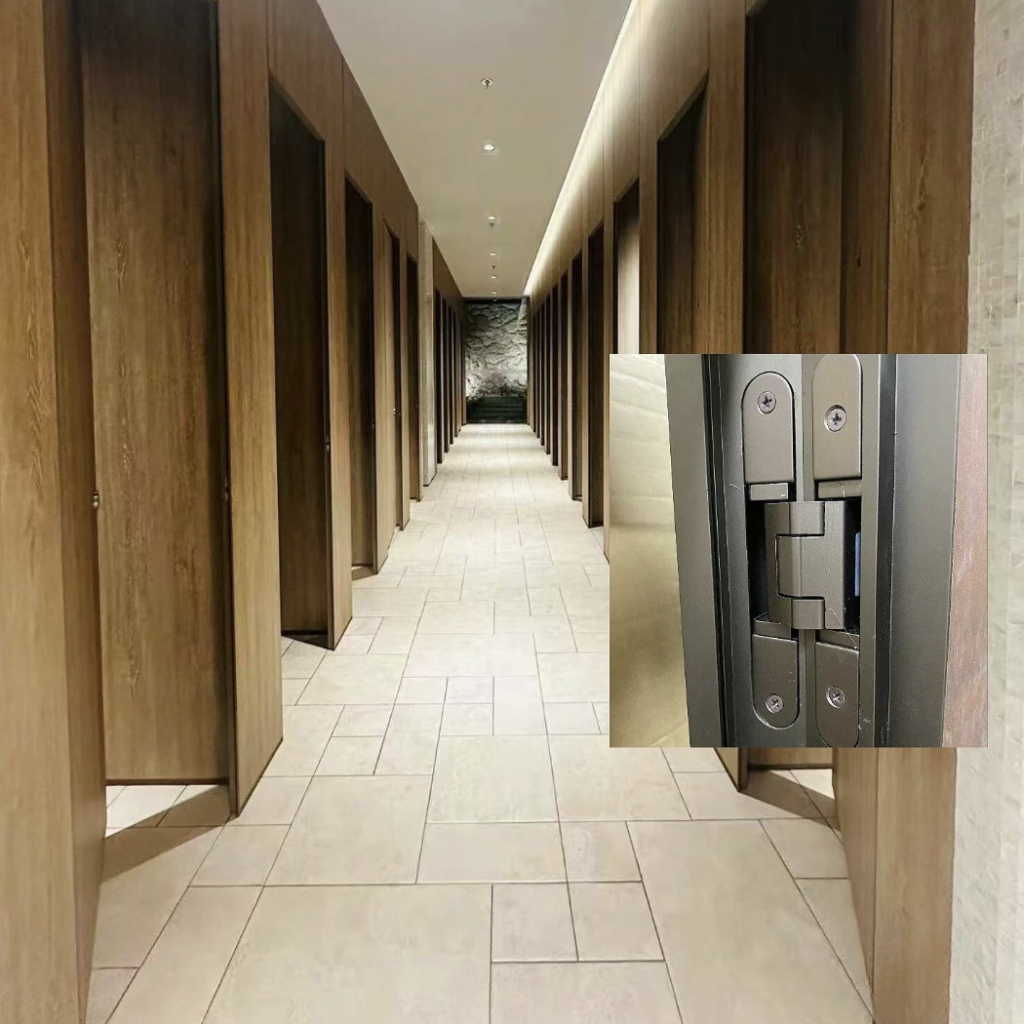

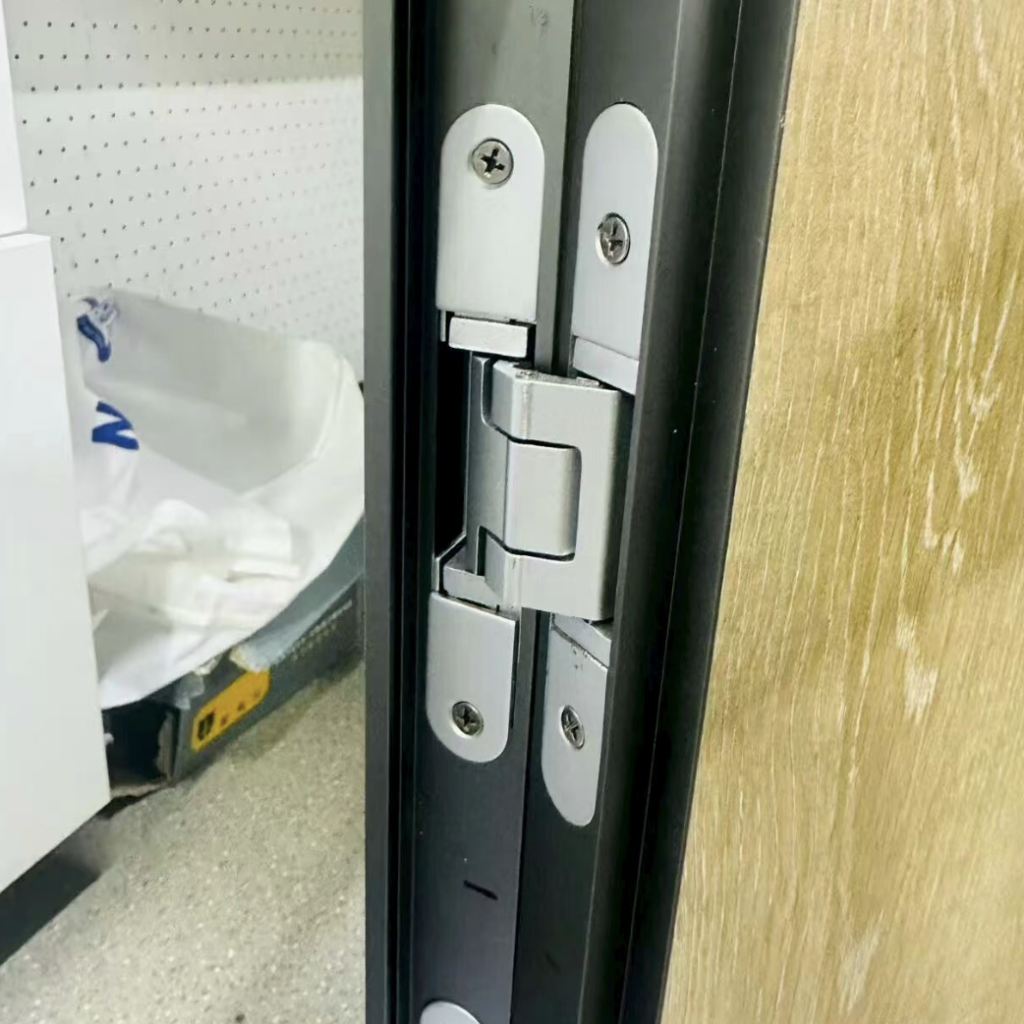

1. Concealed Hinges
Preferred Choice for High-End Projects
Features
- Completely concealed hinges
- Minimalist, premium aesthetic
- Hardware remains invisible when the door is closed
- Delivers the ultimate sense of visual unity
Advantages
- High Load-Bearing Capacity (200kg+)
- Durable Opening and Closing Mechanism (Rated for 200,000+ Cycles)
- Resists Dust Accumulation; Hygienic and Easy to Maintain
- Ideal for High-End Commercial Projects
Applicable Projects
- Shopping Malls
- Office Buildings
- Hotels
- Luxury Retail Spaces
- High-End Mixed-Use Developments (e.g., MixC-style projects)
Shortcoming
- Higher cost
- High requirements for installation precision
- Stricter requirements for door frame structure
Recommendation Index：⭐⭐⭐⭐⭐⭐
CB80 3D
Suitable for wooden doors, for flush doors
Concealed installation
3D adjustable: vertical: ±2mm, horizontal:-2mm/+4mm, depth:±1mm
Opening angle: 180°

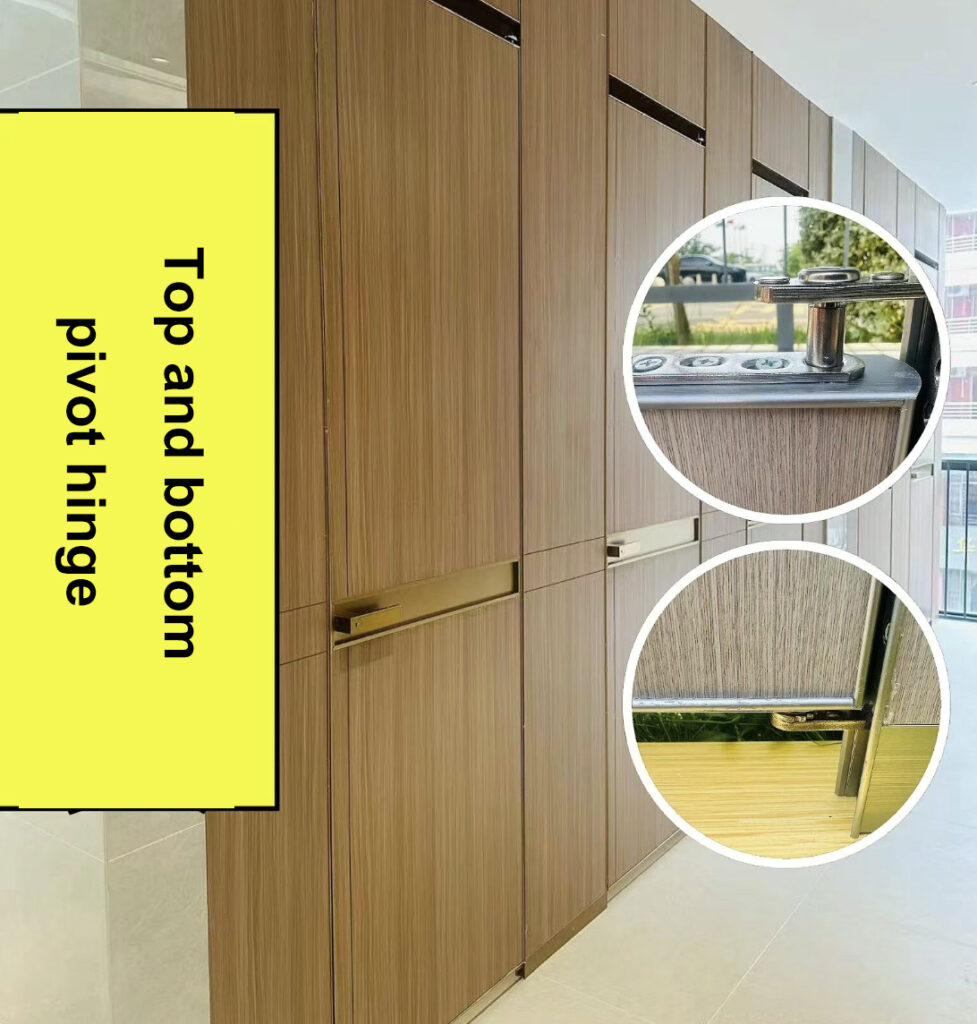

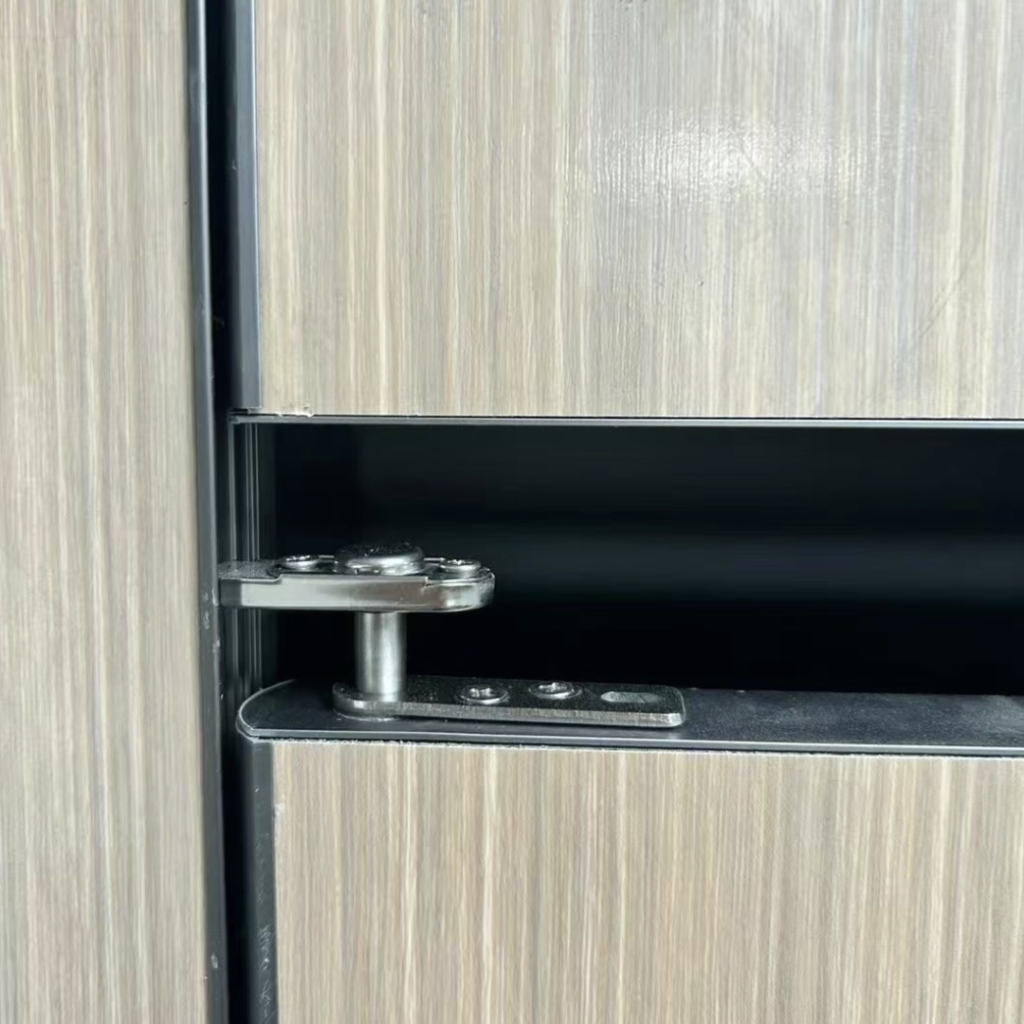

2. Top & Bottom Hinges
The Best Value for High-End Commercial Projects
Hinge Features
- Top and Bottom Bearing (Pivot Hinge)
- Highly Concealed Hardware
- Widely Used in Commercial Projects
Advantages
- Invisible and Aesthetic
- Silent Operation
- Quick and Convenient Installation
- Stable Inner Frame Support
- Rated for 100,000+ Open-Close Cycles
- Excellent Value for Money
Suitable Projects
- Mid-to-High-End Office Buildings
- Chain Commercial Spaces
- Premium Common Areas
- Most Commercial Interior Projects
Reasons for Recommendation
The optimal approach lies in striking a balance between effectiveness, cost, and construction efficiency.
Recommendation Index：⭐⭐⭐⭐

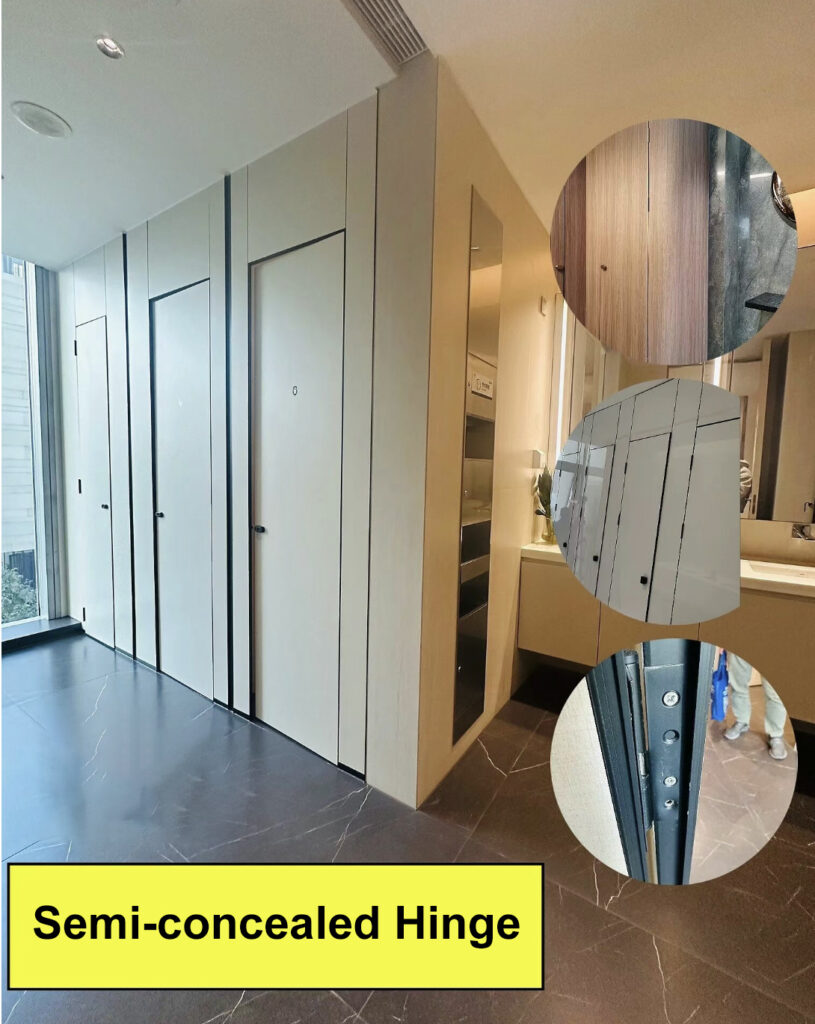

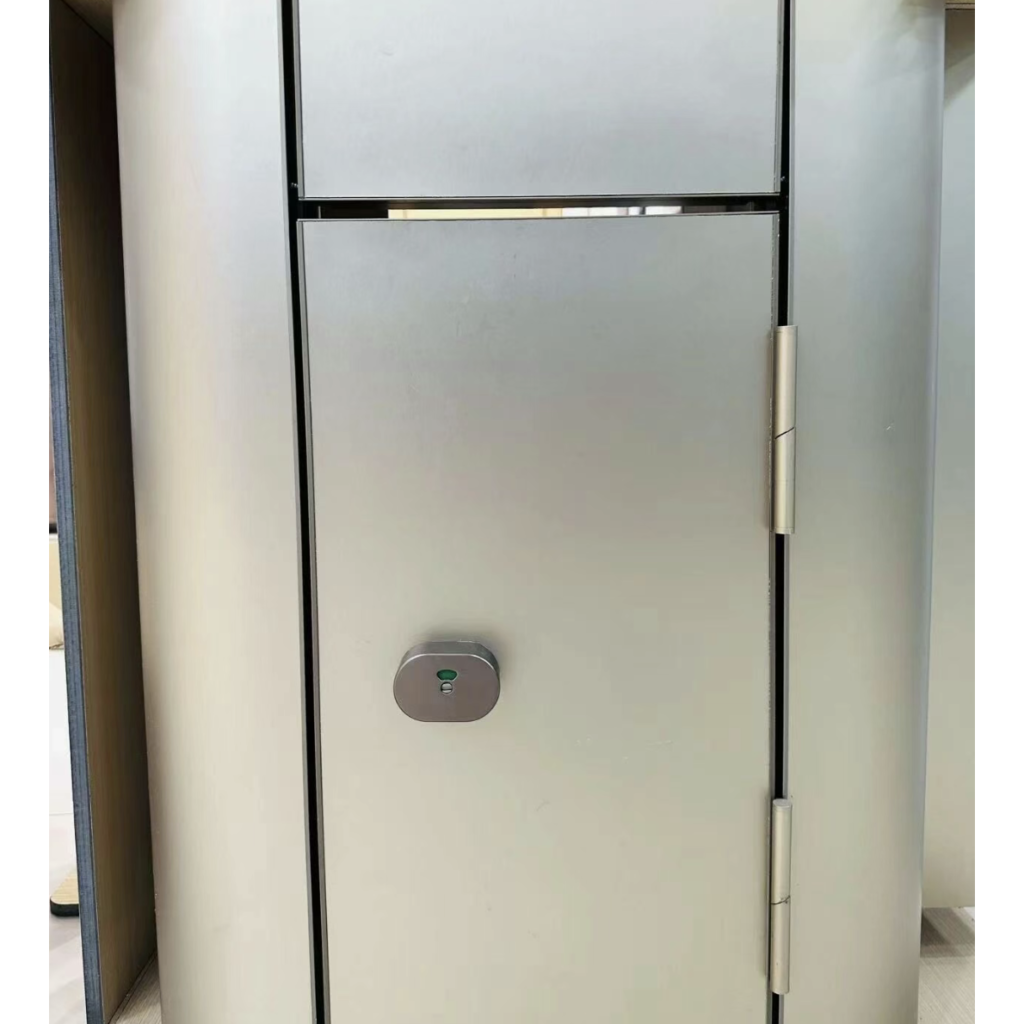

3. Chinese-style (Semi-concealed) Hinge
Hinge Features
- Semi-concealed structure
- Hardware components are partially visible
- Very common in traditional commercial fixtures
Advantages
- Opening/closing lifespan: 200,000+ cycles
- Load-bearing capacity: Up to 100 kg
- Good stability
- Lower cost than concealed hinges
Shortcoming
- Aesthetically slightly inferior
Inferior to concealed hinges
Inferior to pivot hinges - Installation requires a high level of craftsmanship
- Leveling precision relies on experience
Suitable Projects
- Standard Commercial Projects
- Mid-range Commercial Interiors
- Budget-constrained Projects
Recommendation Index：⭐⭐⭐

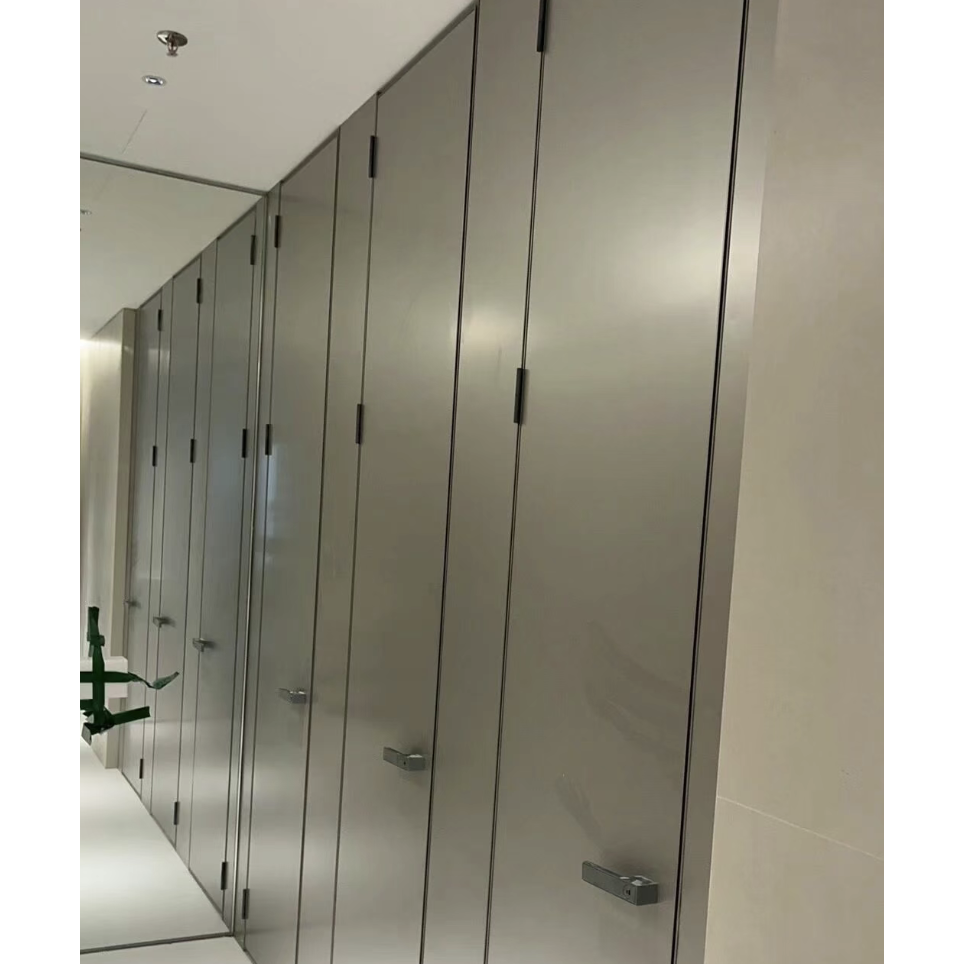

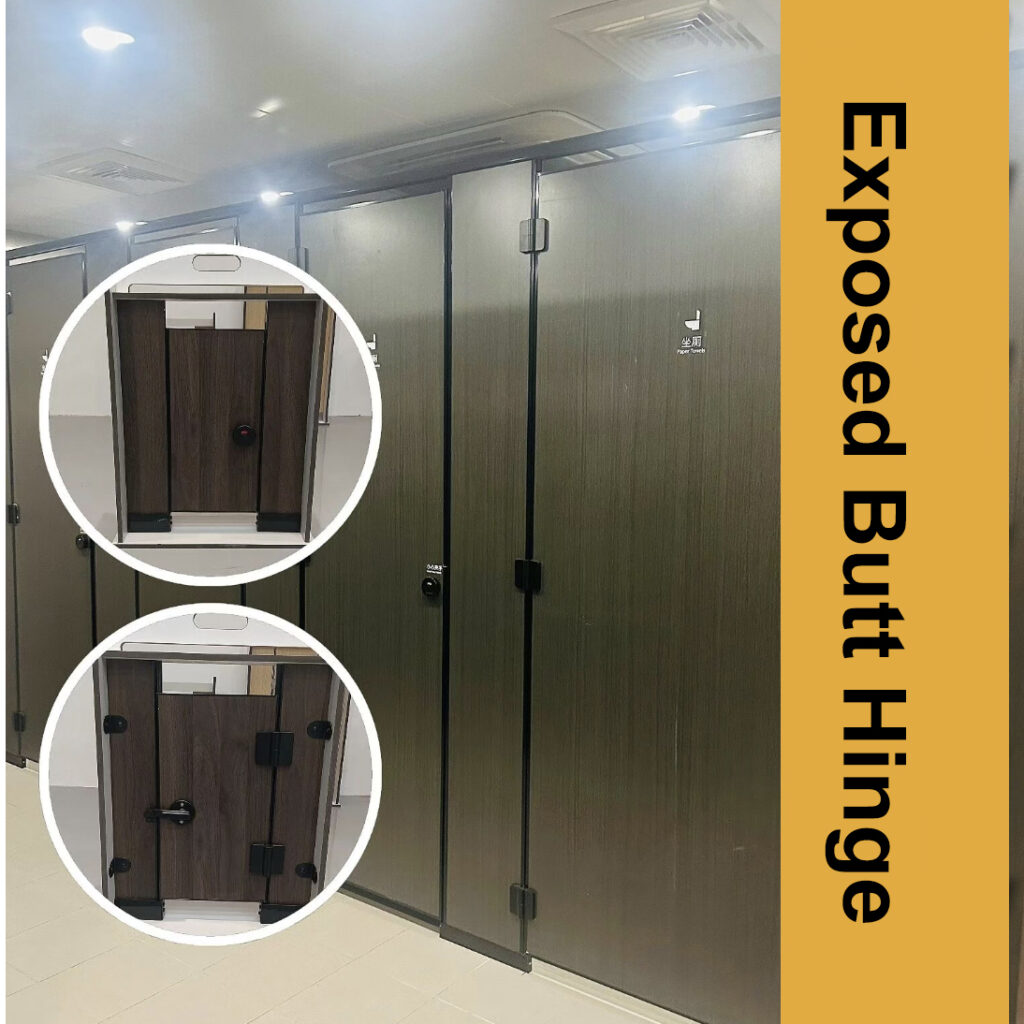

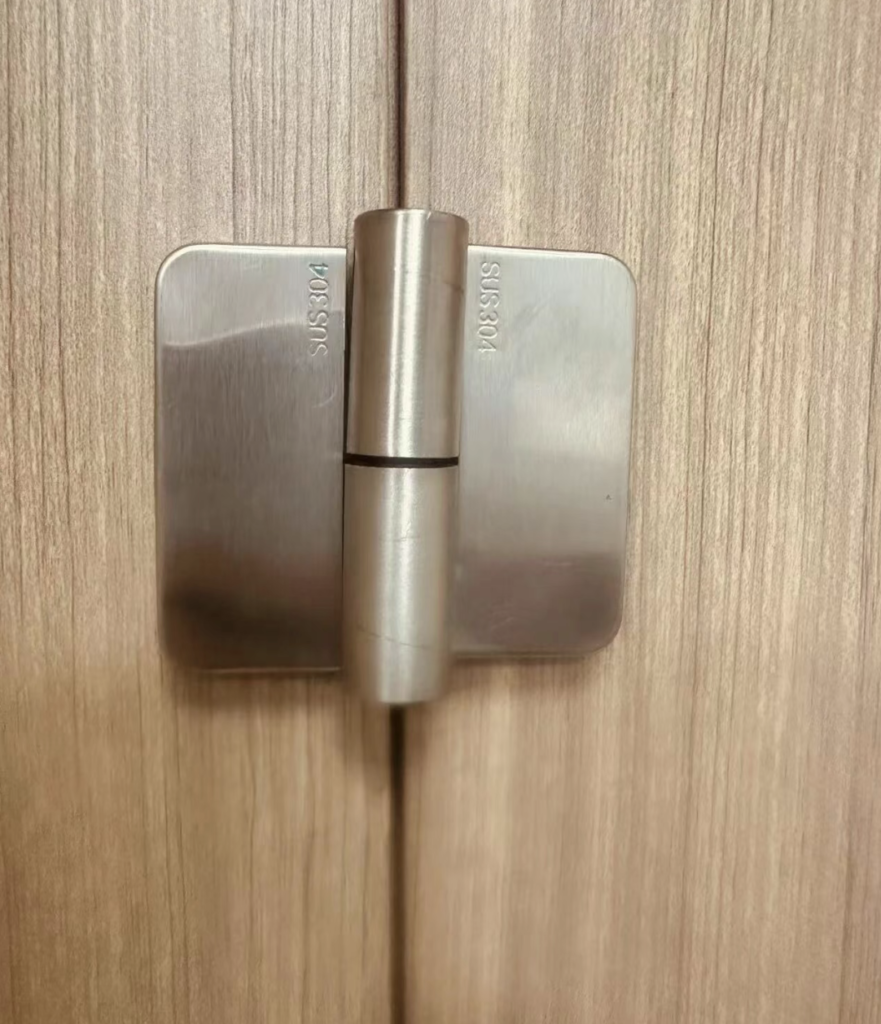

4. Butt Hinge (Common Materials: 304 Stainless Steel)
Hinge Features
- The Most Traditional Solution
- Exposed Installation
- Simple Structure
Advantages
- Economical and practical
- Easy to install
- Convenient to replace
- Durable enough for daily use
Suitable Projects
- Factories
- General Construction Sites
- Schools
- Budget-Conscious Projects
Suggestion
Whenever possible, opt for:
- 304 Stainless Steel
- Extra-thick materials
- Moisture-resistant, rust-proof, and fire-retardant models
Recommendation Index：⭐⭐⭐⭐⭐
SS Butt Hinge
Suitable for fire and smoke doors,
Material: Stainless steel 201/304/316,
With ball bearing (2BB or 4BB)
Packed with stailess steel wood screws
Machine screws available on request for mental doors(MS)
How to Choose the Most Suitable Hinges?
| Project Type | Recommended Hinges |
|---|---|
| High-End Shopping Malls / Hotels | Concealed Hinges |
| Mid-to-High-End Marketplace | Top & Bottom Hinges |
| Standard Commercial Projects | Chinese-Style Semi-Concealed Hinge |
| Factories / Schools / General Projects | Butt Hinge |
Ample Budget: Concealed Hinges
Seeking Best Value: 304 Stainless Steel Butt Hinges
Hardware is the first detail customers see.
Buying Recommendations
| According to door weight | Light-Duty Doors: Standard Solution Heavy-Duty Doors: Concealed Hinges |
| According to budget | Ample Budget: Concealed Hinges Limited Budget: Butt Hinges |
| According to Project Positioning | High-End Projects: —Must be “invisible” —Must be “silent” —Must exude a sense of “premium quality” Standard Projects: Stable and Durable |
